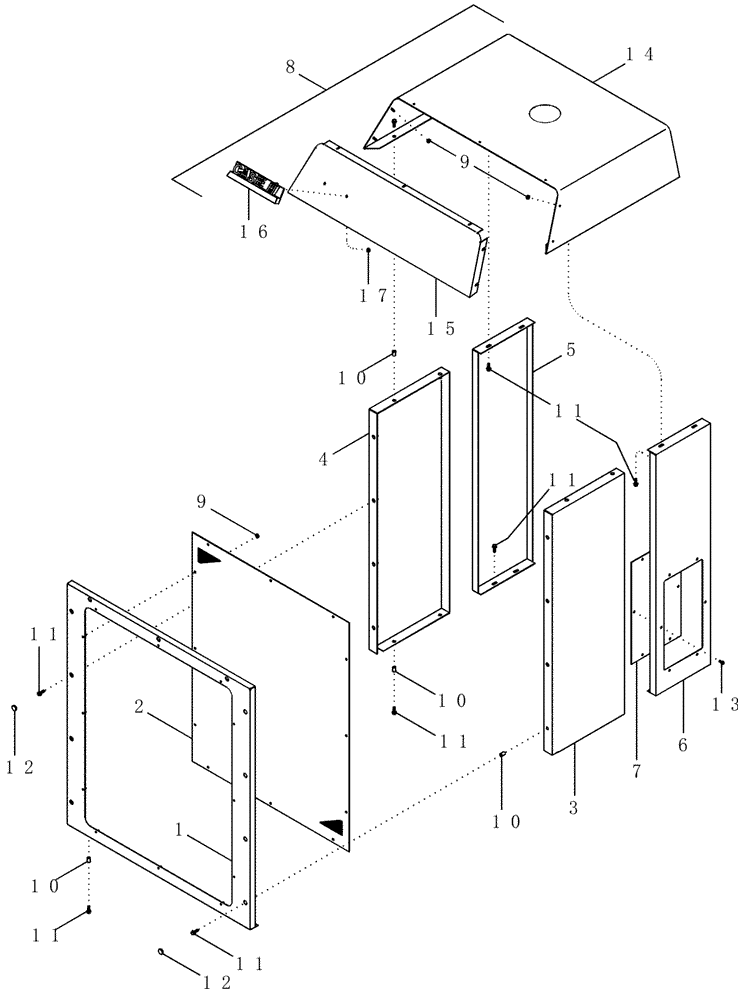

Запчасти Case IH PX170 (09-02) - HOOD ASSEMBLY, FRONT (09) - CHASSIS/ATTACHMENTS

1

87441989

FRAME

1шт.

2

87441992

GRILLE ASSY

1шт.

3

87444502

BOXED PANEL

1шт.

4

87441991

BOXED PANEL

1шт.

5

87420783

PANEL

1шт.

6

87420784

PANEL

1шт.

7

102321A1

PANEL

Access

1шт.

8

NS

NOT SERVICED

HOOD ASSEMBLY, Inc. REF 9 (7), 10 (16) and 14 - 17

1шт.

Order Components

1шт.

9

231-24409

NUT,#10-32

No. 10

19шт.

10

87441708

NUT

33шт.

11

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

30шт.

12

353-405

PLUG,Dome, .562" hole, Nylon

9/16

11шт.

13

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

6шт.

14

87441983

ENGINE HOOD

1шт.

15

87441988

ENGINE HOOD PANEL

1шт.

16

186882A1

EMBLEM CASE/IH

1шт.

17

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.
