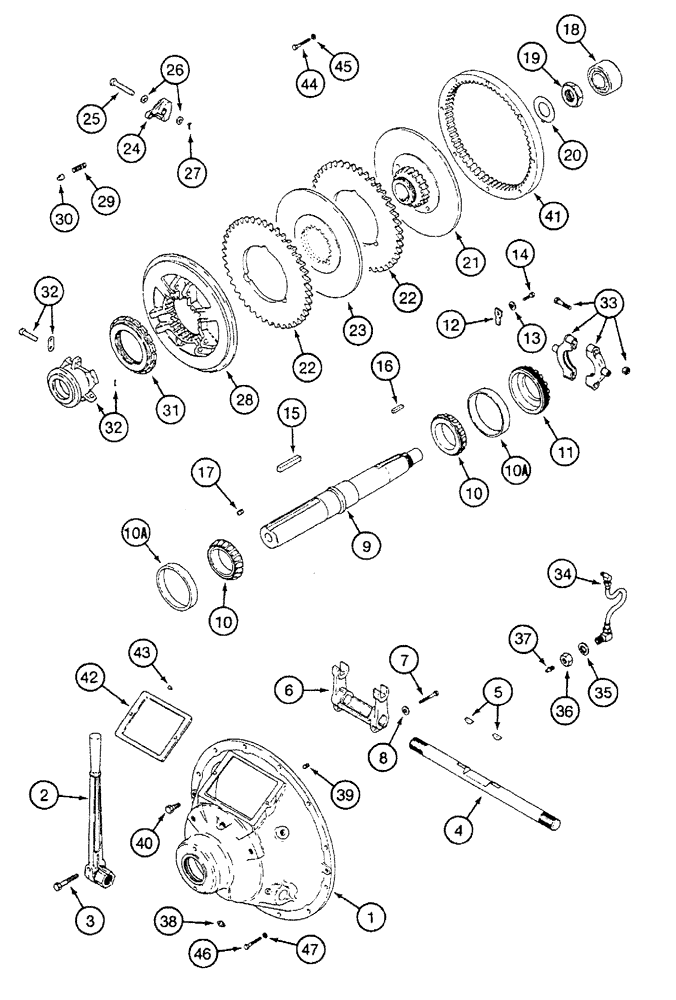

Запчасти Case IH PX170 (02-08) - PTO CLUTCH, PX170 (02) - ENGINE

87421205

CLUTCH

PTO, 11-1/2 in

1шт.

1

103414A1

HOUSING

Clutch

1шт.

2

1347799C1

LEVER

Hand, Clutch

1шт.

3

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

4

A44136

SHAFT

Operating, Clutch

1шт.

5

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

6

51200840

YOKE

UNIVERSAL JOINT YOKE Throwout

1шт.

7

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

8

193-78

LOCK WASHER,3/8"

3/8

2шт.

9

A44144

SHAFT

Clutch

1шт.

10

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

2шт.

10a

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

2шт.

11

A44137

RETAINER

Bearing

1шт.

12

1347816C1

BEARING LOCK NUT

Retainer, Bearing

1шт.

13

193-83

LOCK WASHER,Int Tooth, 5/16"

Lock, 5/16

1шт.

14

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

15

A40256

KEY

5/8 x 5/8 x 5-3/8

1шт.

16

A44140

KEY

1/2 x 1/2 x 3-3/4

1шт.

17

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

18

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

Pilot

1шт.

19

A44138

NUT

Hex, Special, Clutch Hub

1шт.

20

A44139

LOCK WASHER

WASHER, Tab Lock, Hub Nut

1шт.

21

A44145

PLATE

Hub And Back

1шт.

22

1347802C1

PLATE

Driving

2шт.

23

A44143

PLATE

Clutch, Center

1шт.

24

A10444

LEVER

Floating Plate

3шт.

25

A40254

PIN

Pivot, Lever

3шт.

26

A10454

WAVE WASHER

Spring, Pivot Pin

6шт.

27

A43383

SPLIT PIN

Cotter, Special

3шт.

28

A44723

PLATE

Floating

1шт.

29

1347804C1

SPRING

Pressure, Lock Pin

1шт.

30

1347803C1

PIN

Lock, Adjusting Ring

1шт.

31

A10448

RING

Adjusting

1шт.

32

A44135

SLEEVE

Sliding

1шт.

33

A44133

COLLAR ASSY.

Sleeve

1шт.

34

38127D

HOSE ASSY.

12-1/4 in, Lubrication

1шт.

35

193-84

LOCK WASHER,5/8"

Internal Lock, 5/8

1шт.

36

86637932

JAM NUT,Jam, 5/8"-18, G5

1шт.

37

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

39

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

1шт.

40

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

2шт.

41

A44146

RING

Drive

1шт.

42

NSS

NOT SOLD SEPARAT

PLATE, Name and Inspection

1шт.

43

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

Button Head, 1/4 NC x 1/2

2шт.

44

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

8шт.

45

493-21039

LOCK WASHER,Int Tooth, 3/8"

8шт.

46

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

10шт.

46

864-10040

HEX SOC SCREW,M10 x 40mm, Cl 8.8

2шт.

47

892-11010

LOCK WASHER,M10

12шт.
