(0.20.1[01]) - FUEL PUMP (2830121)

Запчасти Case IH PX170 (0.20.1[01]) - FUEL PUMP (2830121) (02) - ENGINE

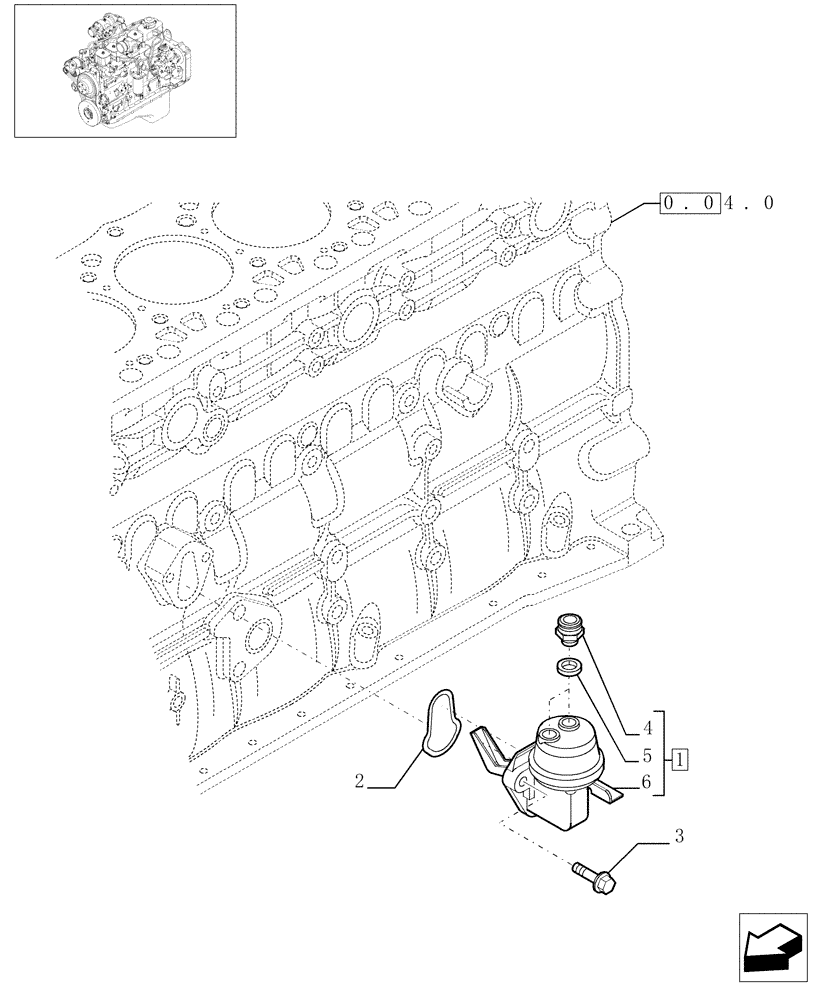

Схема запчастей Case IH PX170 - (0.20.1[01]) - FUEL PUMP (2830121) (02) - ENGINE
0.04.0
6
5
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2830266

FUEL PUMP

ASSY

1шт.

2830266R

REMAN-FUEL LIFT PUMP

PX170 (8/03-)

1шт.

2830266C

FUEL PUMP

Return Number

1шт.

2

2830156

O-RING,70 Duro, M2.62 Thk

1шт.

3

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

4

4890964

FITTING,M12 x 1.5

2шт.

5

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

2шт.

6

2830122

FUEL PUMP

1шт.

2830122R

REMAN-INJECTION PUMP

Reman Fuel Pimp

1шт.

2830122C

CORE-INJECTION PUMP

Return Number, FUEL INJECTION PUMP - for N.A. Only

1шт.

Выбрано товаров: 10
