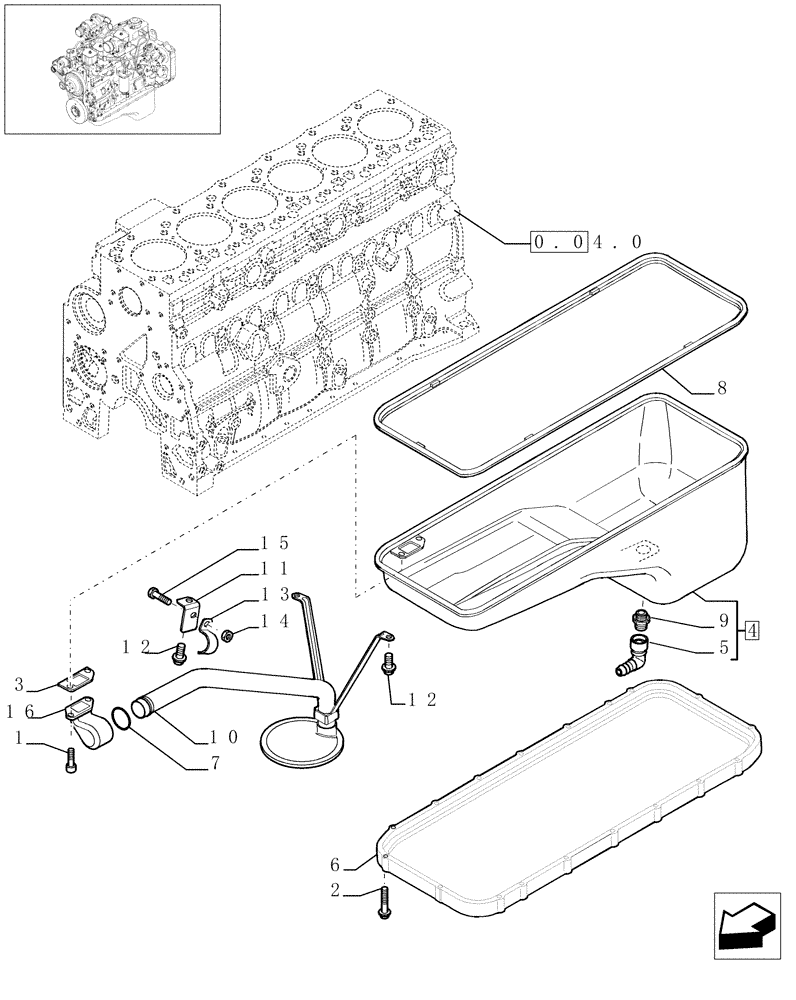

Запчасти Case IH PX140 (0.04.2[01]) - ENGINE OIL SUMP (504084703) (02) - ENGINE

1

504003975

SCREW

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852308

ENGINE OIL PAN

- ASSY

1шт.

5

504078158

DRAIN VALVE

1шт.

6

4897858

SPACER

1шт.

7

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

8

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

9

2853363

DRAIN

1шт.

10

2852654

SUCTION PIPE

PIPE, OIL SUCTION

1шт.

11

2852664

BRACKET

BRACKET

1шт.

12

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

13

2852663

CLAMP

1шт.

14

4899003

FLANGE NUT,M8 x 1.25

1шт.

15

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

16

504048033

HYD CONNECTOR

1шт.
