Запчасти Case IH PX140 (04-05) - ALTERNATOR ASSEMBLY - A187873 (04) - ELECTRICAL SYSTEMS

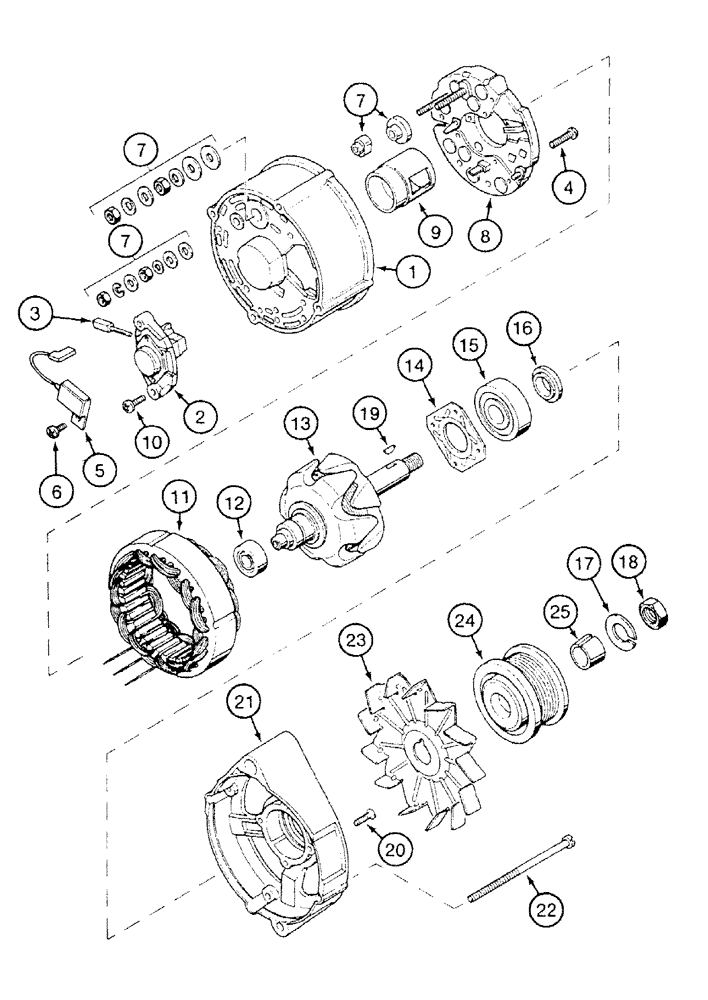

Схема запчастей Case IH PX140 - (04-05) - ALTERNATOR ASSEMBLY - A187873 (04) - ELECTRICAL SYSTEMS
2
1
6
11
19
23
3
22
7
8
14
10
15
20
25
24
9
16
21
13
4
12
18
7
5
17
7

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

ASSEMBLY, Electrical, 65 amp, Inc. REF 1 - 22

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return number

1шт.

A187873GV

ALTERNATOR

Value, 65A

1шт.

1

A187903

COVER

Collector Ring End

1шт.

2

A187906

VOLTAGE REGULATOR

Voltage

1шт.

3

1964968C1

COMMUTATOR BRUSH

Alternator

1шт.

4

A186194

SCREW,M4 x 18mm

Voltage regulator retaining

1шт.

5

3079134R1

CAPACITOR

1шт.

6

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

Capacitor Retaining

1шт.

7

A187904

MULTIPOLE CONNECTOR

Hardware, Terminal

1шт.

8

360330A1

RECTIFIER

Alternator

1шт.

9

A187899

INNER SHIELD

Alternator

1шт.

10

A187907

CAPTIVE WASHER SCREW

With Washer, Rectifier Bridge Retaining

2шт.

11

A187995

STATOR

1шт.

12

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

Ball, Rotor, Collector Ring End

1шт.

13

1987499C1

ROTOR

1шт.

14

A187901

FIXING PLATE

Bearing Retaining

1шт.

15

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Ball, Rotor, Drive End

1шт.

3078897R1

SET OF PARTS

Retaining, Rotor

1шт.

16

NSS

NOT SOLD SEPARAT

RING, Spacer

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER, Rotor Shaft

1шт.

18

NSS

NOT SOLD SEPARAT

NUT, Rotor Shaft

1шт.

19

NSS

NOT SOLD SEPARAT

KEY, Pulley Retainer, Not Used

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW, Bearing Retainer Plate

4шт.

21

A187994

HOUSING

Drive End

1шт.

22

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

Slotted, Housing Retainer

1шт.

23

221425R1

FAN

Alternator

1шт.

Not Included With Alternator Assembly, Order Separately

1шт.

24

J908560

PULLEY

Alternator Drive

1шт.

Not Included With Alternator Assembly, Order Separately

1шт.

25

J908563

RETAINER

Pulley, Alternator

1шт.

Not Included With Alternator Assembly, Order Separately

1шт.

Выбрано товаров: 33
