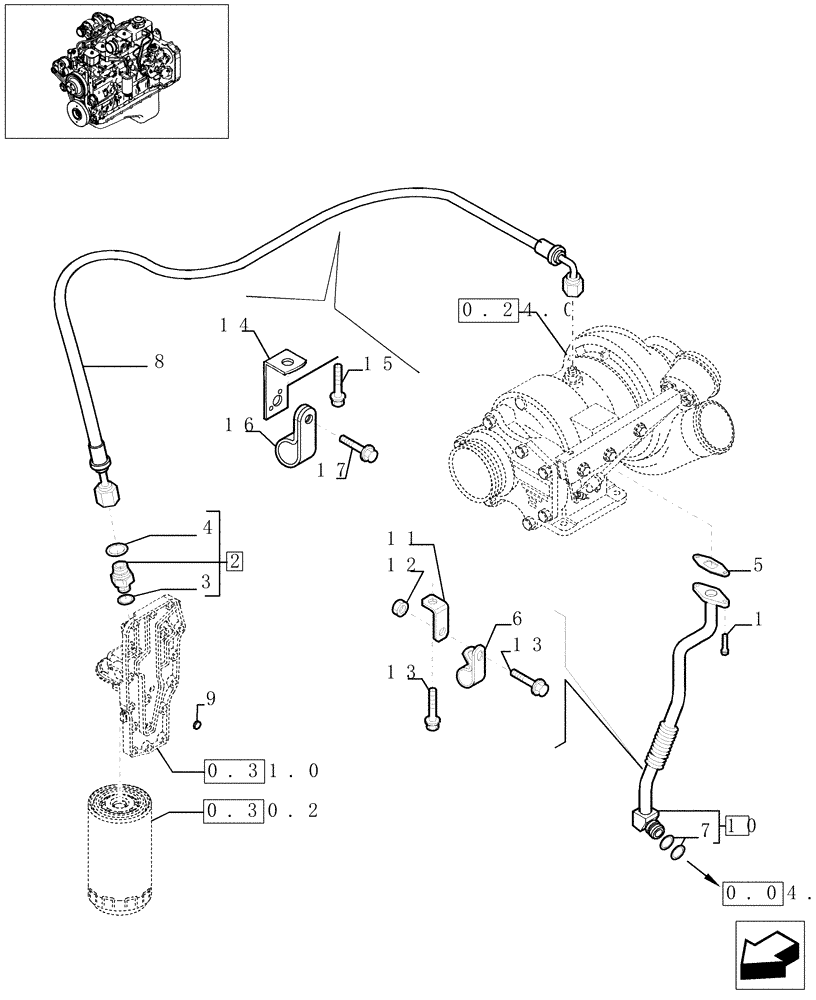

Запчасти Case IH PX140 (0.30.5[01]) - PIPING - ENGINE OIL - PX140 (02) - ENGINE

1

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

- Assy

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

1шт.

6

4896893

CLAMP,20mm W

1шт.

7

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

8

2852746

HOSE,6.35mm ID x 698mm L

Oil

1шт.

9

4895089

PLUG,0.886" L

.886" OD

1шт.

10

504008209

PIPE

- ASSY

1шт.

11

2852390

BRACKET

1шт.

12

2852389

FLANGE NUT

M8

1шт.

13

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

M8X1.25X16

2шт.

14

2852380

BRACKET

1шт.

15

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.

16

4895462

CLAMP

1шт.

17

4899068

BOLT,Flng, M8 x 1.25 x 16mm

M8X17

1шт.
