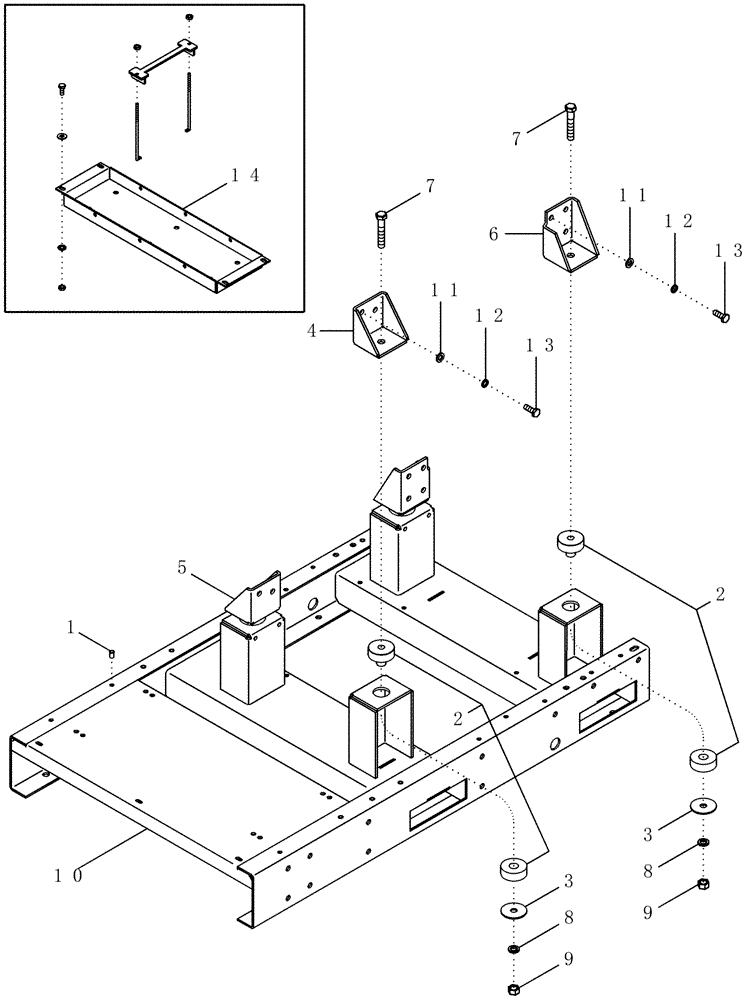

Запчасти Case IH PX110 (09-03) - ENGINE MOUNT (09) - CHASSIS/ATTACHMENTS

1

87441708

NUT

8шт.

2

87441699

ISOLATOR

4шт.

3

L78455

WASHER

4шт.

4

87441710

ENGINE MOUNT

1шт.

5

87441711

ENGINE MOUNT

1шт.

6

87441712

ENGINE MOUNT

2шт.

7

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

4шт.

8

492-21062

LOCK WASHER,5/8"

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

87441713

SKID PLATE

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

12

892-11012

LOCK WASHER,M12

12шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

14

87441982

BATTERY TRAY

1шт.
