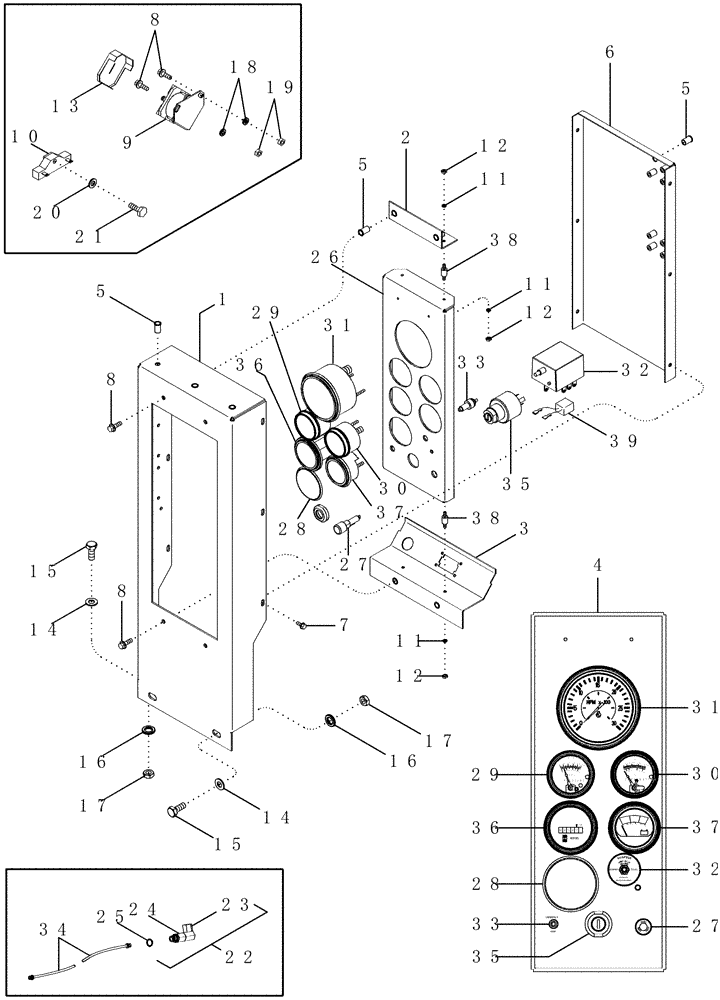

Запчасти Case IH PX110 (04-02) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

248949A1

PANEL

Gauge Mounting

1шт.

2

281682A1

BRACKET

Panel Mount

1шт.

3

248952A1

BRACKET

Gauge Panel, Lower

1шт.

4

87426784

KIT

Instrument, Inc. REF 26 - 33, 35 - 37, 39 and Wiring Harness

1шт.

5

87441708

NUT

15шт.

6

248950A1

PANEL

Instrument, Rear

1шт.

7

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

6шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

6шт.

9

87401172

SOLENOID

1шт.

10

107558C1

RESISTOR

1шт.

11

492-11008

LOCK WASHER,#8

8шт.

12

225-14108

NUT,#8-32

8шт.

13

87416409

PROTECTING COVER

1шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

492-11025

LOCK WASHER,1/4"

2шт.

19

425-104

NUT,1/4"-20, Cl 5

2шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

22

87448350

PIPE FITTING

Engine Oil, Inc. Elbow, Reducer and O-Ring

1шт.

23

87448356

ELBOW

1шт.

24

250838A2

HYD CONNECTOR

1шт.

25

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

26

87421459

PANEL

1шт.

27

1347753C1

HOLDER

Fuse

1шт.

28

353-256

PLUG,1 1/8"

1шт.

29

1347691C1

GAUGE

Oil

1шт.

30

247823A1

ASSEMBLY

Temperature

1шт.

31

400392A1

TACHOMETER

1шт.

32

102787A1

KIT

Shutdown

1шт.

33

1347699C1

BUTTON

Emergency Stop

1шт.

34

87449694

HOSE ASSY.

Oil Pressure Guage

1шт.

35

D134737

IGNITION SWITCH

Switch, Inc. Keys and Nut

1шт.

A77314

NUT

Switch Mounting

1шт.

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

36

D53047

GAUGE

Hour Meter

1шт.

37

1347695C1

VOLTMETER

1шт.

38

87421533

MOUNTING PARTS

Iso

4шт.

39

388061A1

DIODE

1шт.
