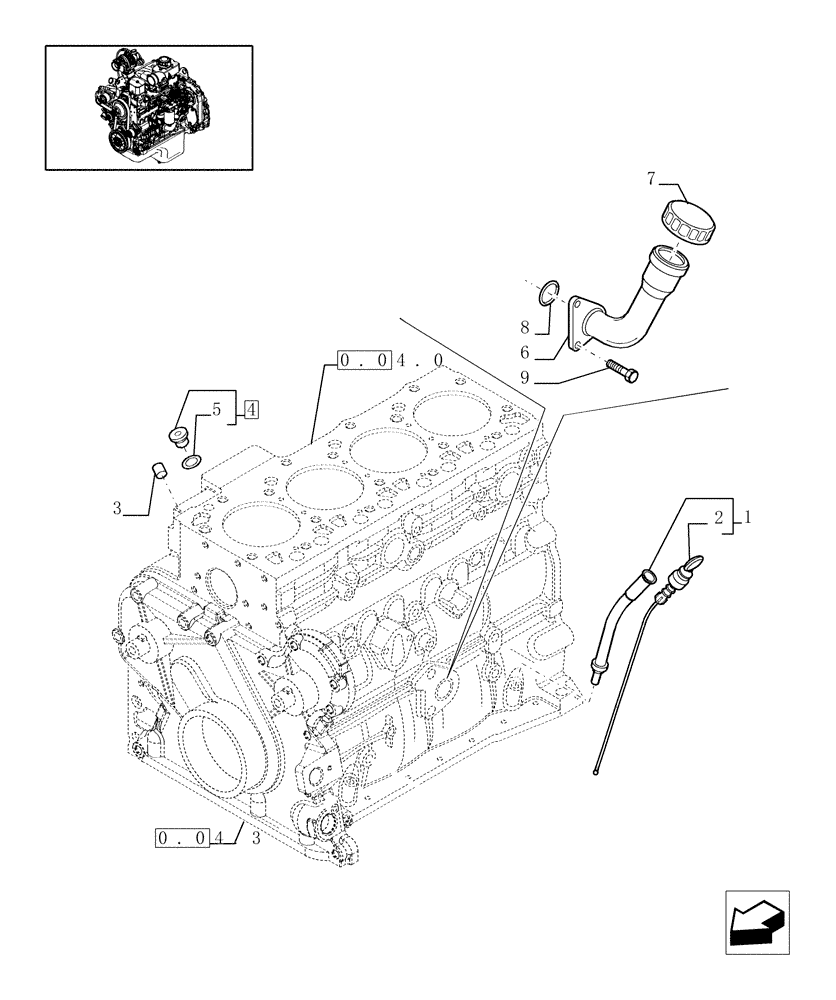

Запчасти Case IH PX110 (0.27.0[01]) - ENGINE OIL DIPSTICK - (504063272 - 504011339) (02) - ENGINE

1

2852761

DIPSTICK

DIPSTICK ASSEMBLY - OIL LEVEL

1шт.

2

2852762

DIPSTICK

DIPSTICK - OIL LEVEL

1шт.

3

4899036

PLUG

2шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2852130

RIGID TUBE,42.43 mm OD, 150, 119.4 mm Length

1шт.

7

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

8

14458681

O-RING,1.487" ID x 0.103" Width

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

M6X18

2шт.
