Запчасти Case IH PX110 (02-09) - PTO CLUTCH (02) - ENGINE

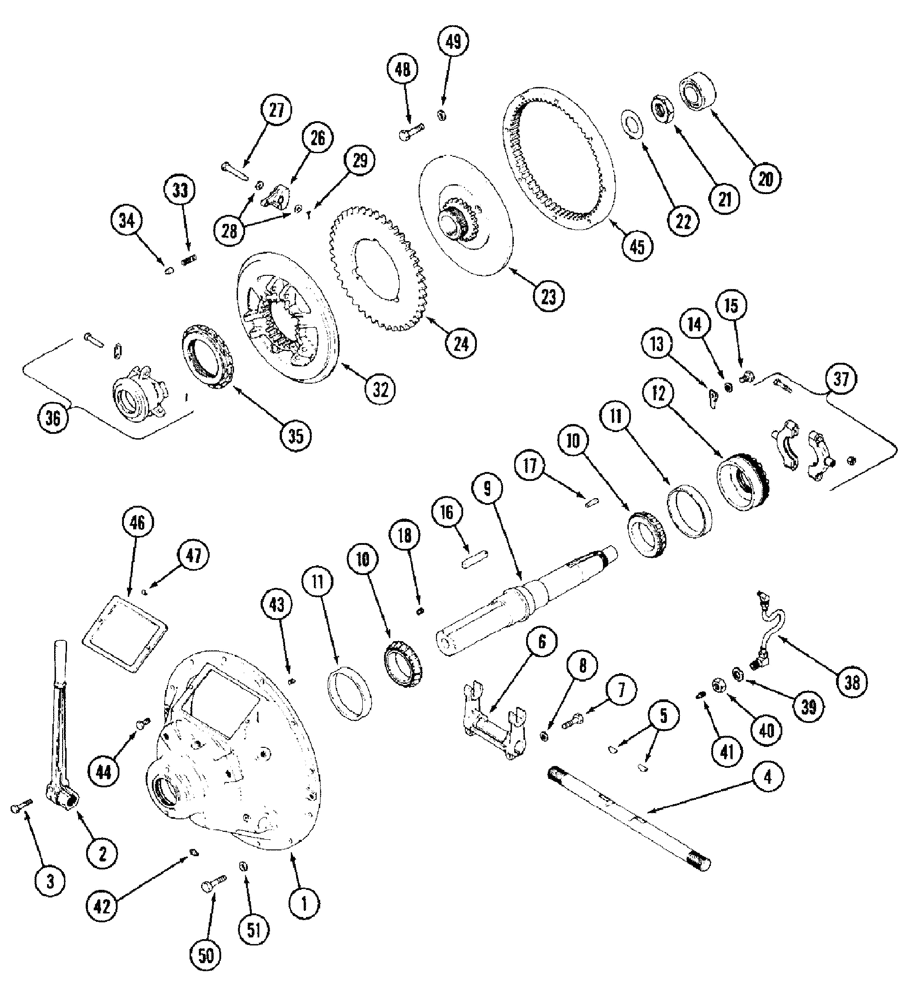

Схема запчастей Case IH PX110 - (02-09) - PTO CLUTCH (02) - ENGINE
8
4
10
24
35
5
34
39
28
42
32
14
29
3
26
51
9
44
27
15
16
48
23
11
33
50
38
47
11
13
40
37
1
17
18
12
49
20
2
6
10
36
22
7
41
43
21
45
46

Артикул

Название

Примечание

Количество

87421200

PTO CLUTCH

11-1/2 inch

1шт.

1

A40259

HOUSING

Clutch

1шт.

2

1347799C1

LEVER

Hand

1шт.

3

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

4

A44136

SHAFT

Operating Lever

1шт.

5

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

6

A10246

YOKE

UNIVERSAL JOINT YOKE Throwout

1шт.

7

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

8

193-78

LOCK WASHER,3/8"

Heavy Duty, Internal Tooth Lock, 3/8 inch

2шт.

9

A43199

SHAFT

Clutch

1шт.

10

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

Tapered Roller Bearing

2шт.

11

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

Tapered Roller Bearing

2шт.

12

A43327

RETAINER

Bearing

1шт.

13

1347816C1

BEARING LOCK NUT

Bearing Retainer

1шт.

14

193-83

LOCK WASHER,Int Tooth, 5/16"

Heavy Duty, Internal Tooth Lock, 5/16 inch

1шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

16

A40256

KEY

Square, 5/8 x 5/8 x 5-3/8 inch

1шт.

17

A40305

KEY

Square, 3/8 x 3/8 x 2-1/2 inch

1шт.

18

221-841

PLUG

Hex Socket, 1/4 inch PT

1шт.

20

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

1шт.

21

A58595

NUT

Hex

1шт.

22

A9273

LOCK WASHER

Tab Lock, Hub Nut

1шт.

23

A10453

PLATE

Hub

1шт.

24

1347802C1

PLATE

Driving

1шт.

26

A10444

LEVER

Floating Plate

3шт.

27

A40254

PIN

Pivot, Lever

3шт.

28

A10454

WAVE WASHER

Spring, Pivot Pin

6шт.

29

A43383

SPLIT PIN

Cotter, Special

3шт.

32

A44723

PLATE

Floating

1шт.

33

1347804C1

SPRING

Adjustable Lock Pin

1шт.

34

1347803C1

PIN

Lock, Adjusting Ring

1шт.

35

A10448

RING

Adjusting

1шт.

37

A40245

COLLAR

Sleeve

1шт.

38

1347801C1

HOSE

Flexible, 311 mm (12-1/4 inch) Long

1шт.

39

193-84

LOCK WASHER,5/8"

Heavy Duty, Internal Tooth Lock, 5/8 inch

1шт.

40

25-1110

NUT,5/8"-18, G5

1шт.

41

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

43

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

1шт.

44

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

2шт.

45

51200863

RING

Drive

1шт.

46

NSS

NOT SOLD SEPARAT

PLATE - Name and Inspection

1шт.

47

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

External Tooth Lock, 1/4 NC x 1/2 inch

2шт.

48

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

8шт.

49

493-21039

LOCK WASHER,Int Tooth, 3/8"

8шт.

50

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

51

892-11010

LOCK WASHER,M10

12шт.

Выбрано товаров: 47
