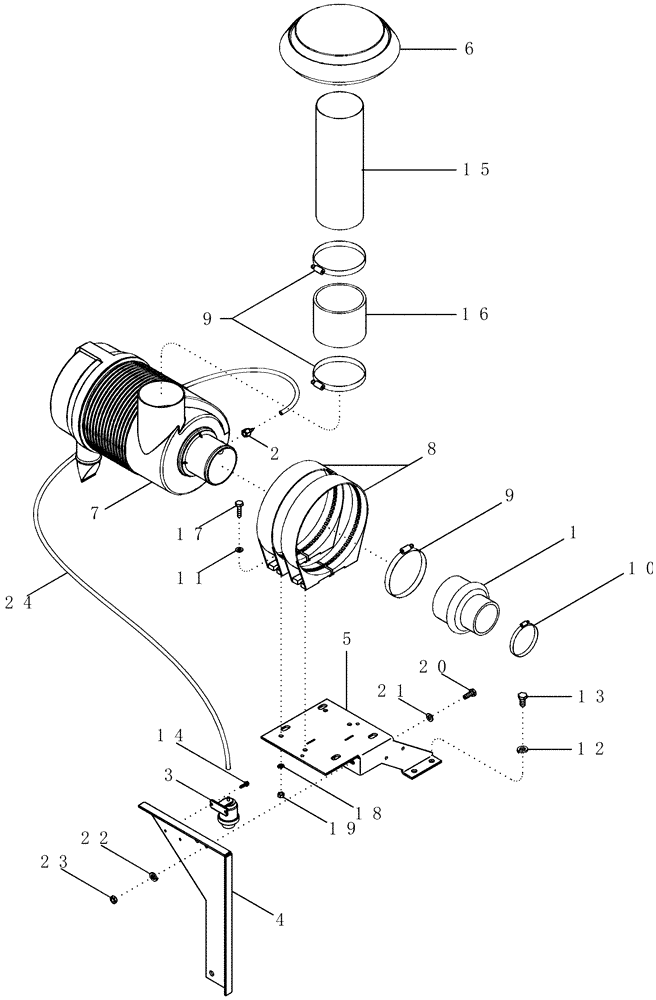

Запчасти Case IH PX110 (02-03) - AIR CLEANER AND MOUNTING (02) - ENGINE

1

A56094

HOSE

Tube, 4 in to 3 in

1шт.

2

217-208

FITTING

Air Restriction Indicator

1шт.

3

533917C2

GAUGE

Air Restriction

1шт.

4

87441967

BRACKET

1шт.

5

87441966

BRACKET

1шт.

6

S512971

CAP

1шт.

7

87443668

CLEANER ASSY.

Air

1шт.

See Figure 02-04

1шт.

8

380813A1

BRACKET

Mounting

2шт.

9

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

3шт.

10

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

14

280-14412

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

2шт.

15

87443841

AIR INTAKE TUBE,4.5" OD x 13" L

1шт.

16

87443842

HOSE

1шт.

17

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

18

892-11008

LOCK WASHER,8mm ID

4шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

87441806

HOSE

Restriction Indicator, 5/32 ID x 16 inch

1шт.
