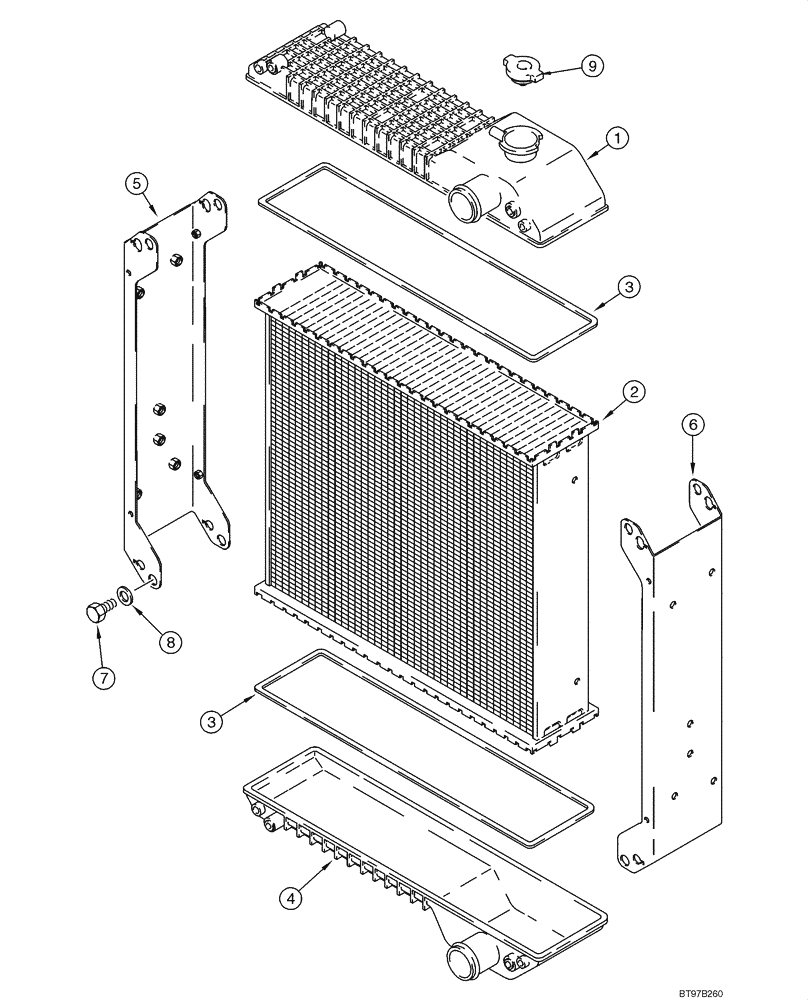

Запчасти Case IH PX110 (02-02) - RADIATOR ASSY (HEAVY DUTY) (02) - ENGINE

239739A2

RADIATOR

5 Row, Heavy Duty, Inc. REF 1 - 9

1шт.

1

175161A1

TANK

1шт.

2

257434A1

CORE

1шт.

3

175163A1

GASKET,3.3mm Thk

Upper And Lower

2шт.

4

175162A1

RESERVOIR

1шт.

5

175164A1

SUPPORT

Left Hand

1шт.

6

175165A2

SUPPORT

Right Hand

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

A170241

RADIATOR CAP

15 psi

1шт.
