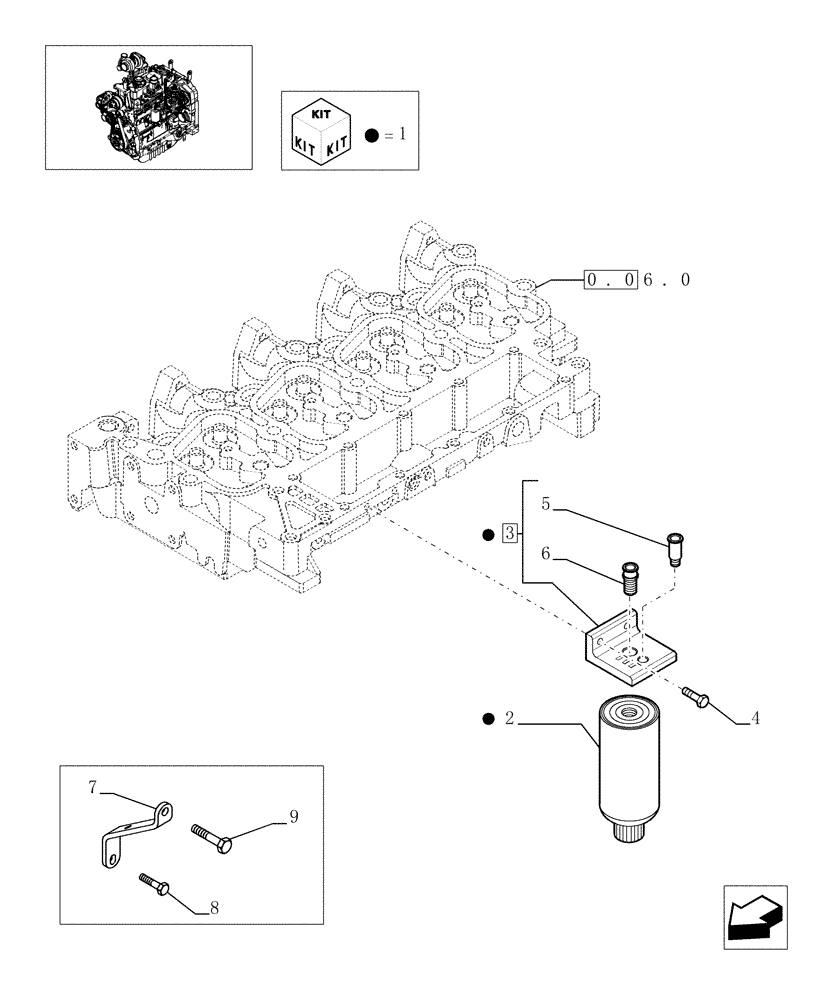

Запчасти Case IH PX110 (0.20.0[01]) - FUEL FILTER (504054973) BSN 90629 (02) - ENGINE

1

NS

NOT SERVICED

FILTER ASSEMBLY, Order Components

1шт.

2

2852693

FUEL FILTER

1шт.

3

2830455

FILTER HEAD

1шт.

4

16586424

SCREW,M8 x 25mm

2шт.

5

2830453

ADAPTER,M16 x 1.5

1шт.

6

2830454

ADAPTER,M12 x 1.5

1шт.

7

2854144

BRACKET

Fuel Filter Head

1шт.

8

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

9

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.
