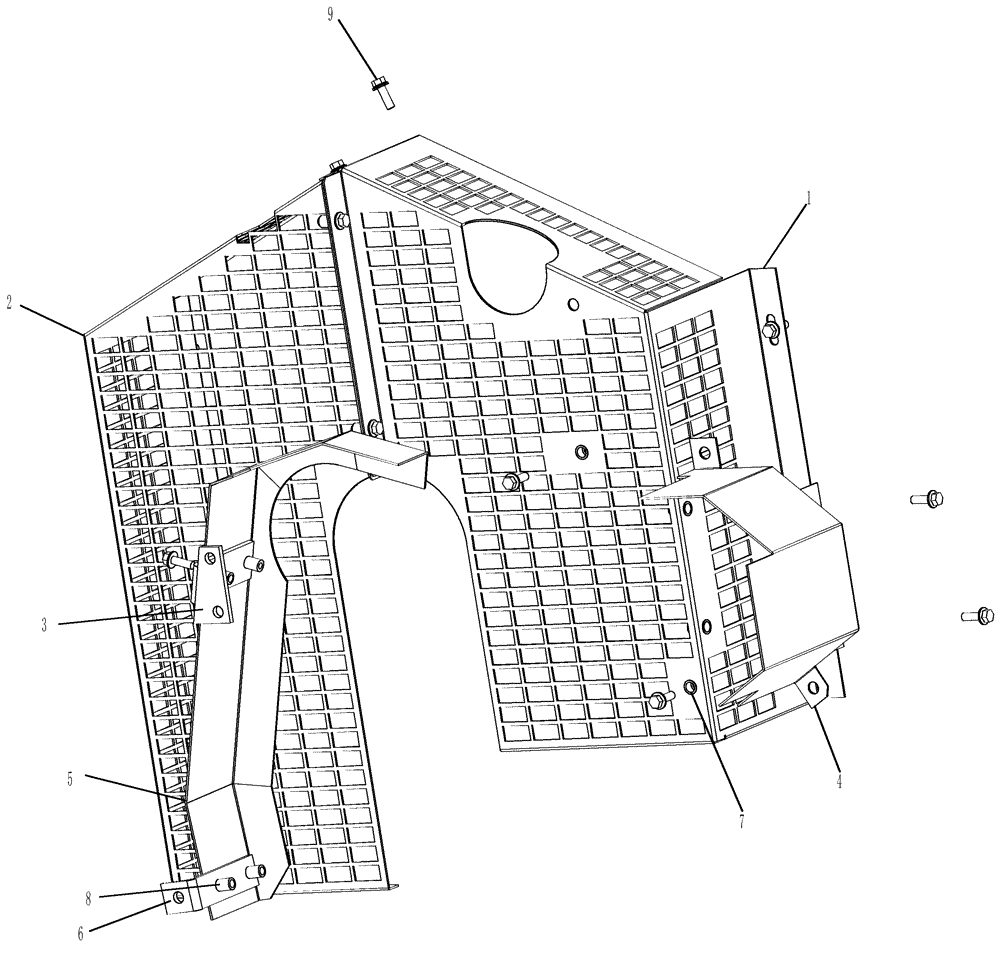

Запчасти Case IH P85 (90.114.01) - GRILL AND BELT GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87710016

GRILLE

Right

1шт.

2

87710017

GRILLE

Left

1шт.

3

87710018

BRACKET

Upper Left Guard

1шт.

4

87710019

GRILLE

Alternator

1шт.

5

87710020

GUARD

Left Belt

1шт.

6

87710021

BRACKET

Lower Left Guard

1шт.

7

87441708

NUT

9шт.

8

87268402

INSERT

4шт.

9

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

16шт.
