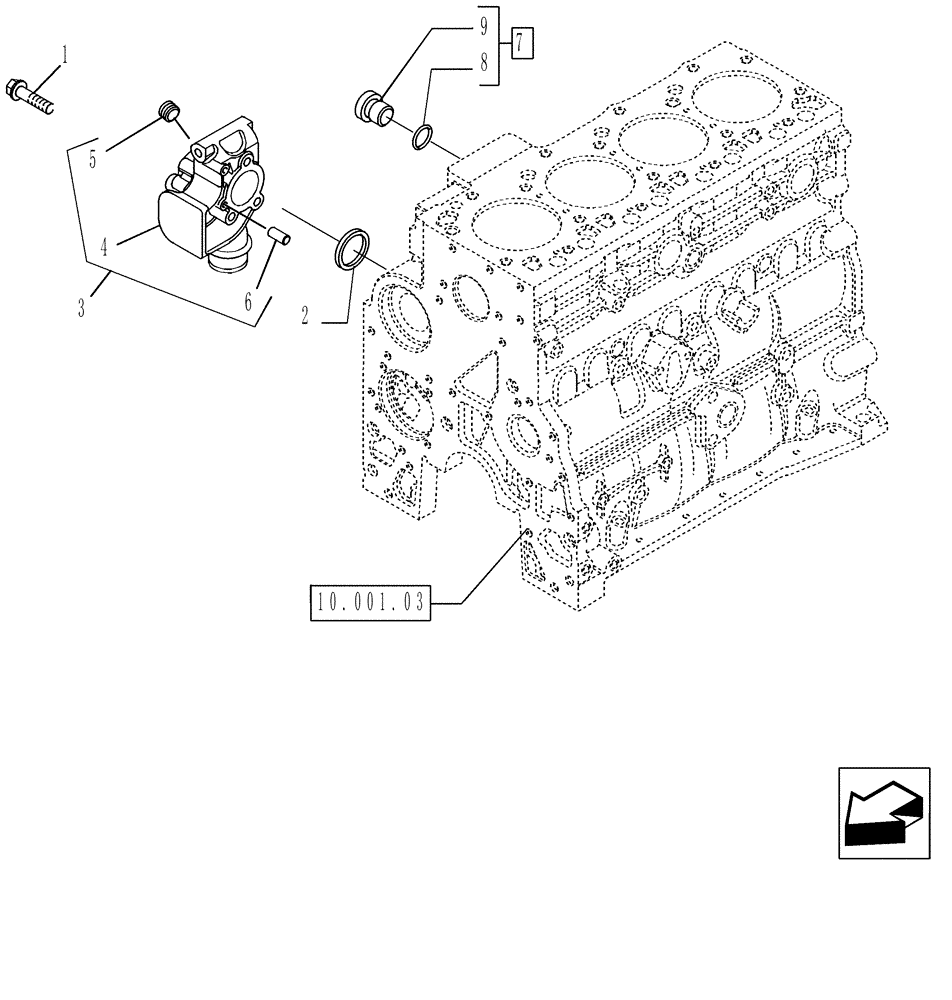

Запчасти Case IH P85 (10.400.01) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE

1

2852325

SCREW

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2856567

INLET MANIFOLD

- ASSY, Inc. 4 - 6

1шт.

4

2856568

2шт.

5

2856569

PLUG

1шт.

6

2853128

DOWEL,M6.35 x 19 L

1шт.

7

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy, Incl. 8, 9

1шт.

8

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

9

4895624

PLUG,M16 x 1.5 x 18mm L

1шт.
