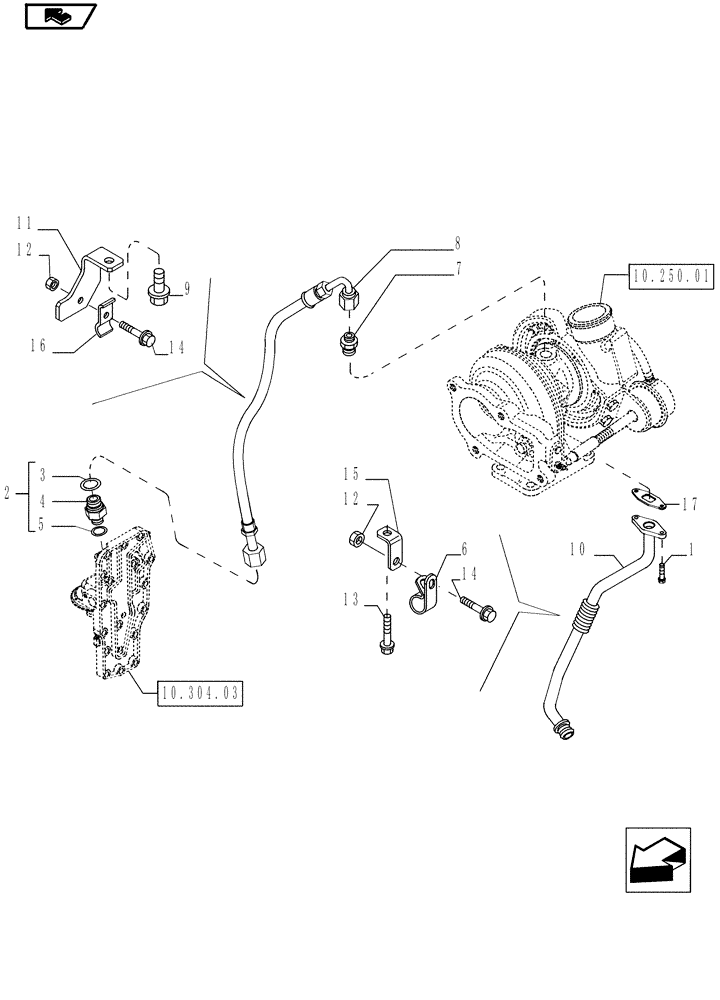

Запчасти Case IH P85 (10.304.02) - PIPING - ENGINE OIL (10) - ENGINE

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

2

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

- ASSY, Inc. 3 - 5

1шт.

3

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

4

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

1шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

2852229

HYD CONNECTOR,M10 x 1.25 x 9/16"-18

- Assy

1шт.

8

2852256

TUBE

1шт.

9

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

10

2852230

TUBE,507, 150.34 mm Length

1шт.

11

2852563

BRACKET

1шт.

12

2852197

FLANGE NUT,M6 x 1

2шт.

13

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

14

2852101

FLANGE BOLT,Hex, M6 x 16mm

2шт.

15

2852196

BRACKET

1шт.

16

2852258

CLAMP

1шт.

17

4899467

GASKET

1шт.
