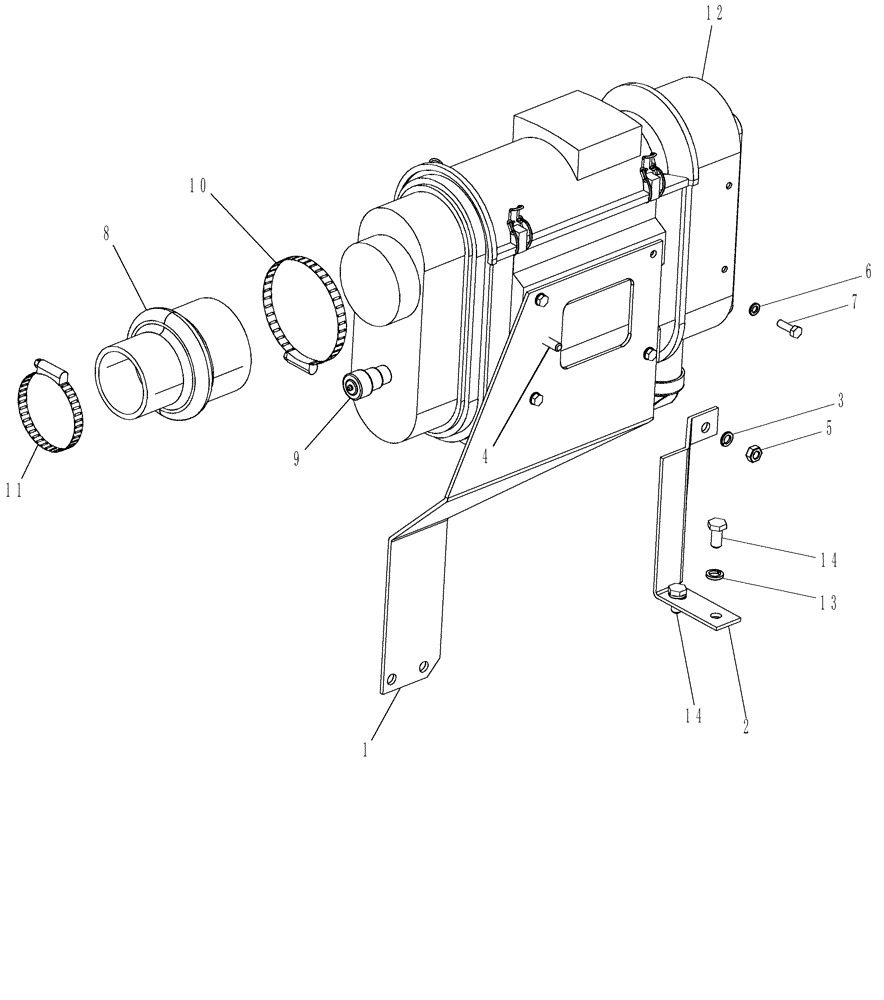

Запчасти Case IH P85 (10.202.01[02]) - AIR CLEANER AND MOUNTING - P85 (10) - ENGINE

1

84194180

BRACKET

1шт.

2

87716541

BRACKET

1шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

4

1106231

1шт.

5

100016

NUT,M10 x 1.5, Cl 8

1шт.

6

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

8

84194181

COUPLING RING

4 Inch ID to 3 Inch ID

1шт.

9

A59569

INDICATOR

Restriction

1шт.

10

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

11

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

12

84414427

AIR CLEANER

1шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

14

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

15

D36264

FITTING

1шт.

16

87720898

ELEMENT

Primary, Not Illustrated

1шт.

17

87720899

ELEMENT

Secondary, Not Illustrated

1шт.
