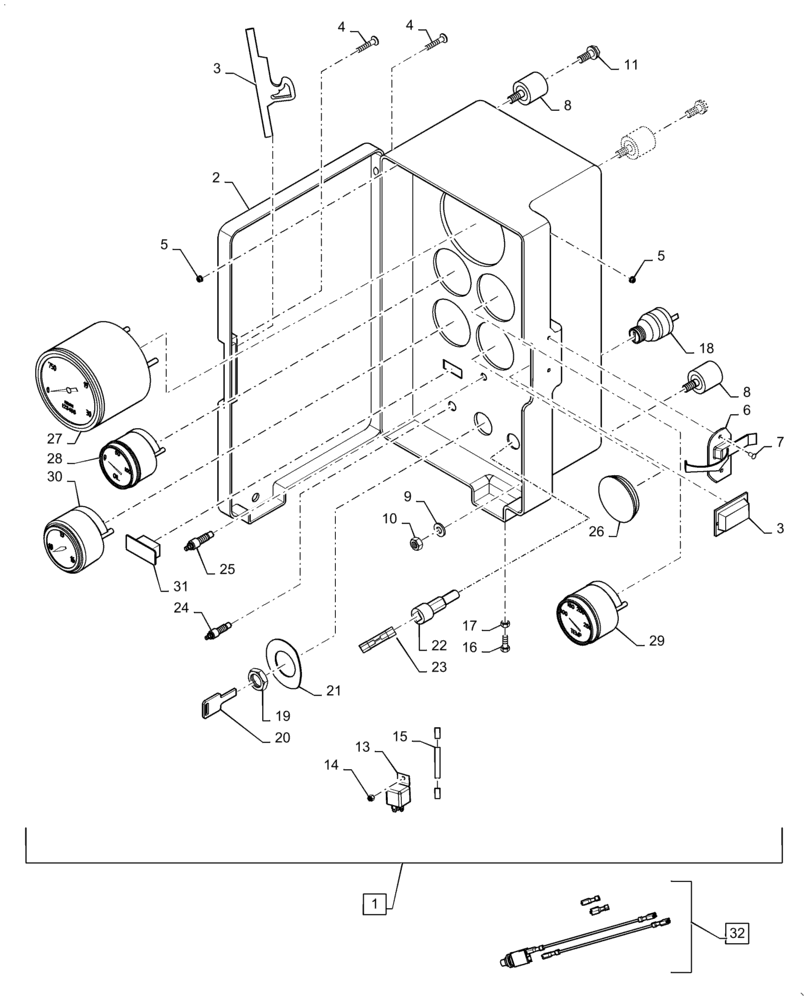

Запчасти Case IH P70 (55.418.02[02]) - CONTROL PANEL (55) - ELECTRICAL SYSTEMS

1

84286050

CONTROL PANEL

Complete, Incl 2 - 31 (DJA0022569 and After) P-Series (Y5XEN0288 and After) S-Series

1шт.

2

84294040

BOXED PANEL

Metal

1шт.

2

47511253

PANEL

Plastic

1шт.

3

47507671

LATCH

Internal Face Plate

1шт.

4

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

Inner Latch, Hinge Handle

11шт.

5

231-14406

LOCK NUT,#6-32, GB

11шт.

6

87708284

LATCH

External

1шт.

7

87030764

RIVET,Pop, 1/8" x .400"

2шт.

8

87708282

ISOLATOR

Mount

4шт.

9

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

4шт.

10

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

11

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

12

84294074

WIRE HARNESS

Control Panel (Not Shown)

1шт.

13

1983420C2

RELAY

Bosch, Incl with 12

1шт.

14

280942

NUT,Keps, w/LW,#10-32

Relay to Tach

2шт.

15

47612022

DIODE

Incl with 12

2шт.

16

81822758

SCREW,Pan, #8 - 32 x 1/2"

Termianl to Block

2шт.

17

86977693

NUT,Serrated, #8 - 32, Gr 5

Termianl to Block

2шт.

18

9703814

IGNITION SWITCH

1шт.

19

47513697

NUT

Ignition Switch

1шт.

20

9703810

IGNITION KEY

1шт.

21

87656848

DECAL

Key Switch

1шт.

22

1347753C1

HOLDER

Snap-In

1шт.

23

590420

FUSE

15A

1шт.

24

1347699C1

BUTTON

E, Stop Button

1шт.

25

84412526

PUSH BUTTON

Shutdown Bypass

1шт.

26

84294044

PLUG

2 1/8"

1шт.

27

84293165

TACHOMETER

With Hourmeter

1шт.

28

84294047

GAUGE

Oil Pressure, Electric

1шт.

29

84294065

GAUGE

Coolant Temp

1шт.

30

47507767

GAUGE

Volt Meter 8 - 16

1шт.

31

86539709

PLUG

Switch

1шт.

32

84409131

SERVICE KIT

Shutdown Ovverride (For Units Not Built with 84412526 Switch)

1шт.
