Запчасти Case IH P70 (55.418.02[01]) - CONTROL PANEL (55) - ELECTRICAL SYSTEMS

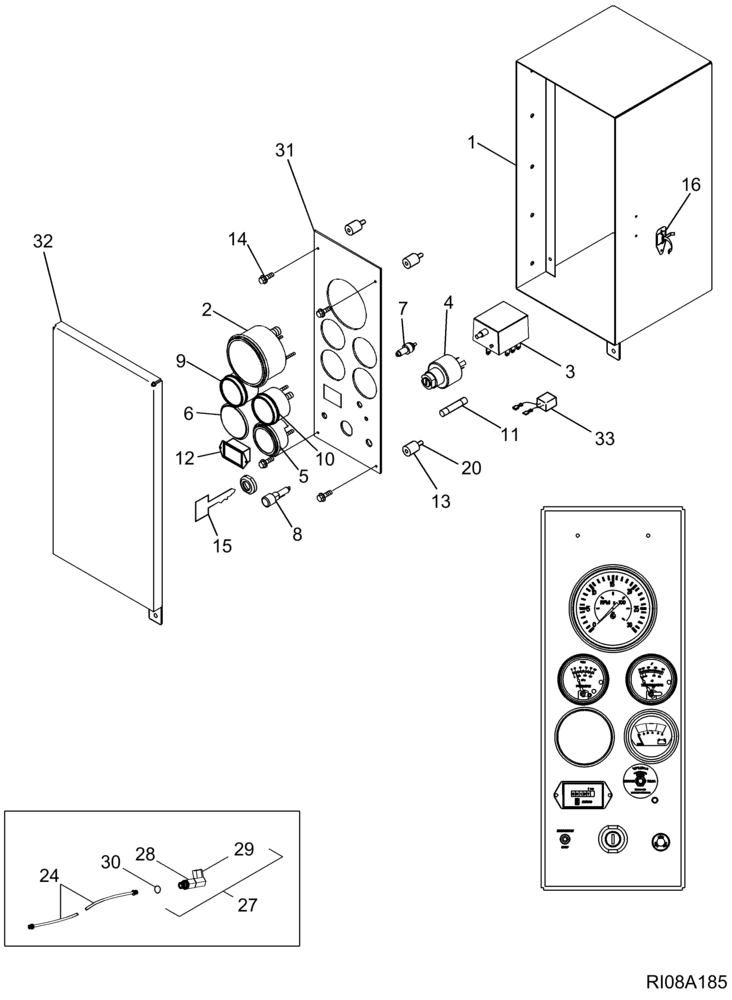

Схема запчастей Case IH P70 - (55.418.02[01]) - CONTROL PANEL (55) - ELECTRICAL SYSTEMS
1
13
11
5
24
3
6
31
30
ri08a185
27
33
12
14
29
28
2
15
7
9
20
32
4
16
10
8

Артикул

Название

Примечание

Количество

1

87708281

CONTROL PANEL

Steel Incl 14, 16 - 17, 31 - 32 (Prior To DJA0022569 P Series) (Y5XEN01288 S-Series)

1шт.

2

87463102

TACHOMETER

1шт.

3

102787A1

KIT

Shutdown

1шт.

4

D134737

IGNITION SWITCH

Switch, Inc. Keys and Nut

1шт.

5

87708275

GAUGE

Voltmeter

1шт.

6

353-256

PLUG,1 1/8"

1шт.

7

1347699C1

BUTTON

Emergency Stop

1шт.

8

1347753C1

HOLDER

Fuse

1шт.

9

87708277

GAUGE

Oil Pressure

1шт.

10

87708278

GAUGE

Coolant Temperature

1шт.

11

590420

FUSE

15 Amp

1шт.

12

87708280

HOURMETER

Hour Meter

1шт.

13

87708282

ISOLATOR

4шт.

14

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

15

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

16

87708284

LATCH

1шт.

17

87030764

RIVET,Pop, 1/8" x .400"

2шт.

18

240667A1

TERMINAL CONNECTOR,2 - 12 Pin, 8 - 24 SAE

Terminal

1шт.

19

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

1шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

292029

SPECIAL TOOL

3шт.

22

87719450

ELBOW

1шт.

23

86977693

NUT,Serrated, #8 - 32, Gr 5

2шт.

24

283983A1

HOSE,45.00"

Oil Pressure

1шт.

25

87708286

BUSHING

1шт.

26

87105416

HOSE PROTECTION,16.64 mm ID x 1345.00 mm

1шт.

27

87448350

PIPE FITTING

Inc. 28 - 30

1шт.

28

250838A2

HYD CONNECTOR

1шт.

29

87448356

ELBOW

1шт.

30

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Face Plate

1шт.

32

NSS

NOT SOLD SEPARAT

Cover

1шт.

33

388061A1

DIODE

1шт.
