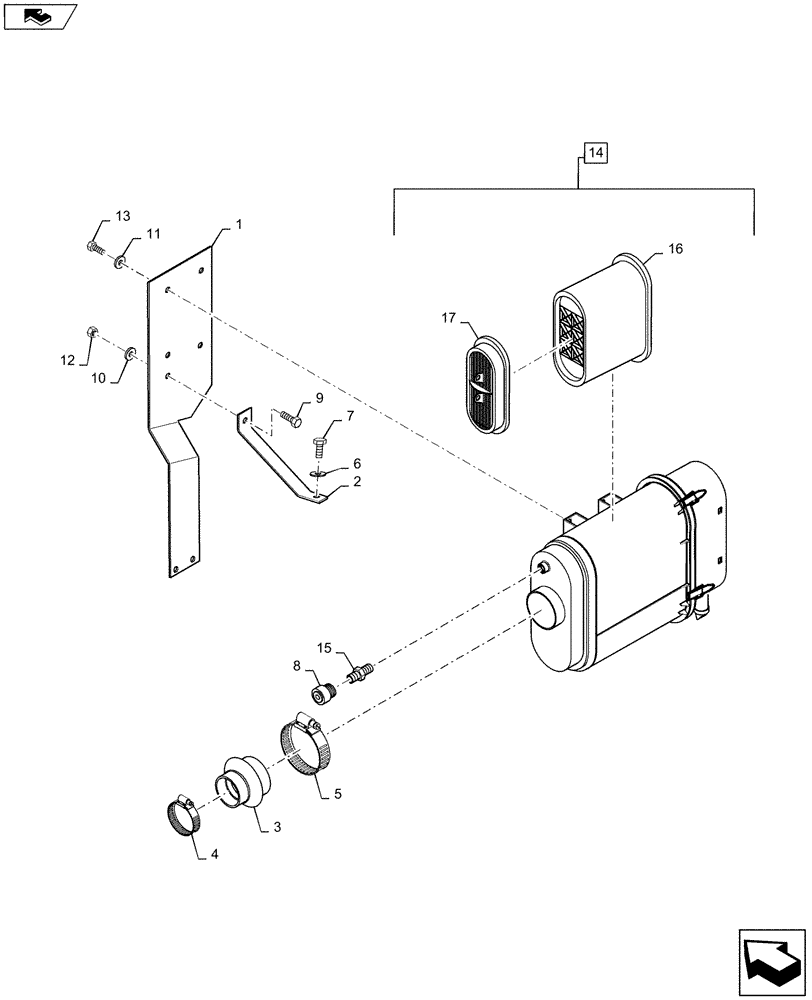

Запчасти Case IH P70 (10.202.01[01]) - AIR CLEANER AND MOUNTING - P70 (10) - ENGINE

1

87716543

BRACKET

1шт.

2

87694419

BRACKET

1шт.

3

S83126

ADAPTER

1шт.

4

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

5

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

8

A59569

INDICATOR

Gauge, Restriction

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

12

280136

NUT,3/8"-16, G8

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

14

87716536

AIR CLEANER

Incl 16 - 17

1шт.

15

D36264

FITTING

Restriction Indicator

1шт.

16

87037984

ELEMENT

Primary Air

1шт.

17

87037985

ELEMENT

Secondary Air

1шт.
