Запчасти Case IH P70 (09-04) - ENGINE MOUNT AND BATTERY TRAY (09) - CHASSIS/ATTACHMENTS

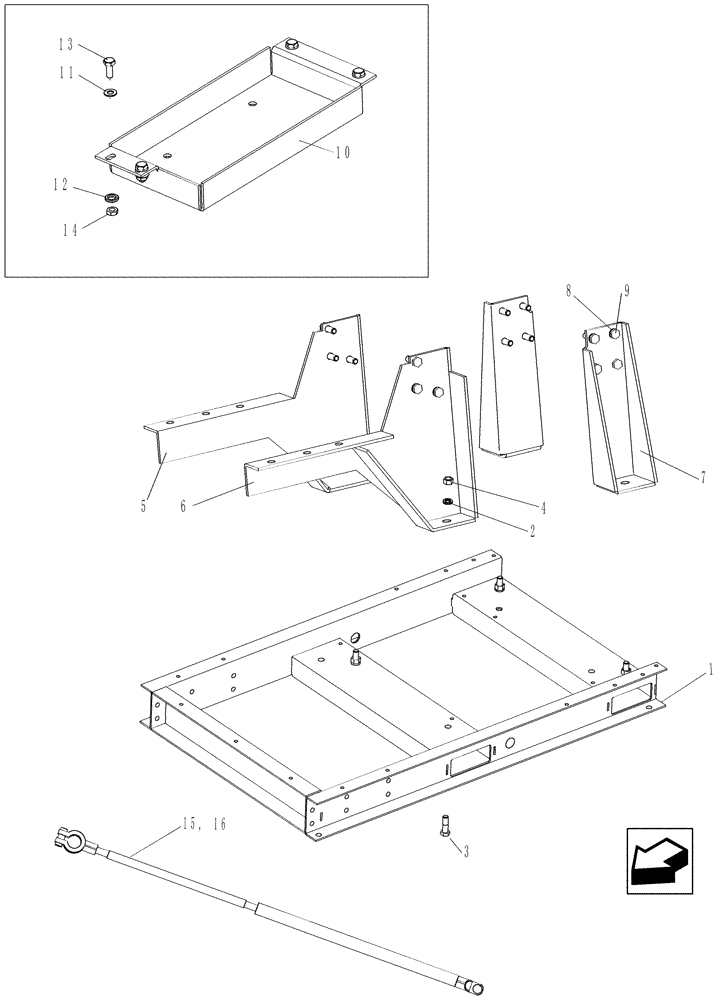

Схема запчастей Case IH P70 - (09-04) - ENGINE MOUNT AND BATTERY TRAY (09) - CHASSIS/ATTACHMENTS
7
1
12
2
6
3
5
13
11
10
4
14
9
8

Артикул

Название

Примечание

Количество

1

84173849

SKID PLATE

1шт.

2

86508732

BOLT,5/8"-11 x 2.391" Cl 8

4шт.

3

492-21062

LOCK WASHER,5/8"

4шт.

4

86625068

NUT,5/8"-11, G8

4шт.

5

87710609

SUPPORT

Right

1шт.

6

87710610

SUPPORT

Left

1шт.

7

87710618

FOOT

Rear

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

14шт.

9

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

14шт.

10

87694415

BATTERY TRAY

1шт.

11

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

14

425-106

NUT,3/8"-16, Cl 5

4шт.

15

87745688

CABLE

(Shown)

1шт.

16

87745689

CABLE

1шт.

Выбрано товаров: 16
