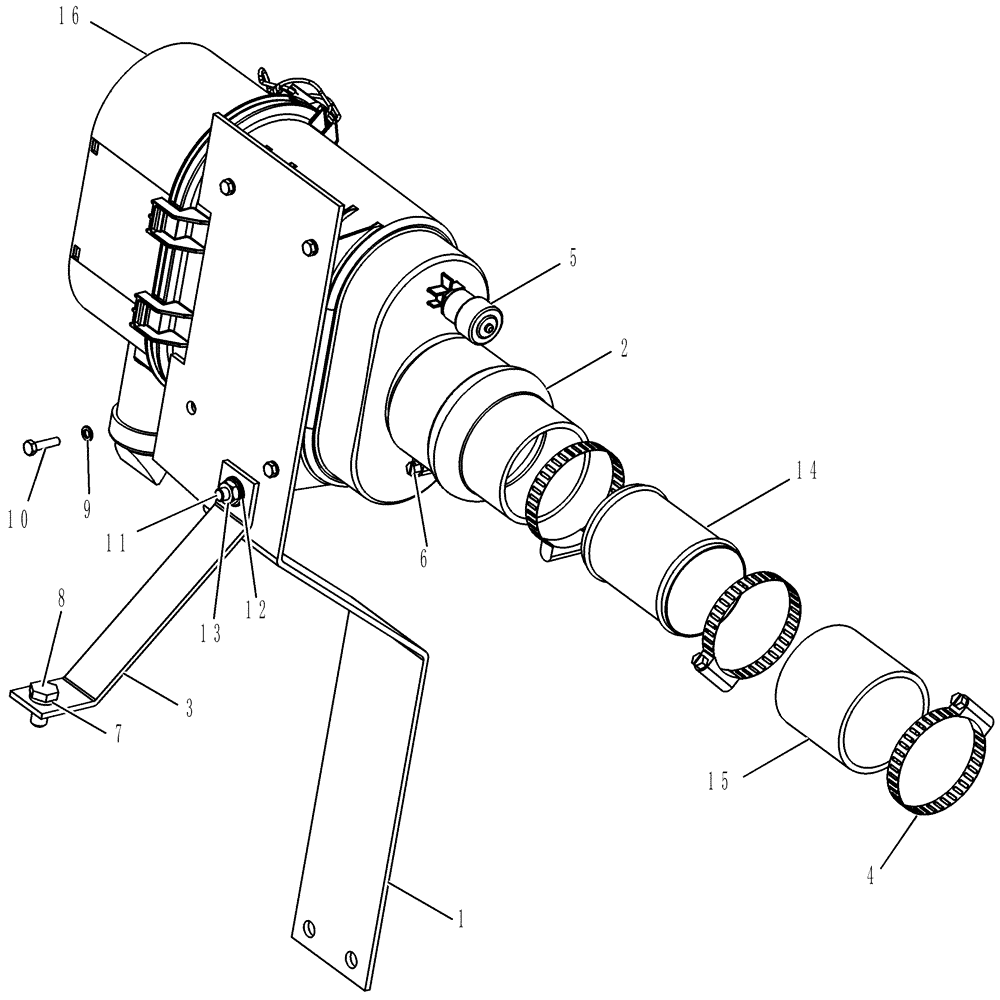

Запчасти Case IH P70 (02-03) - AIR CLEANER AND MOUNTING - P70 (02) - ENGINE

1

87716542

BRACKET

1шт.

2

S83126

ADAPTER

1шт.

3

87716546

SUPPORT

1шт.

4

87040758

HOSE CLAMP,71.4mm - 95.2mm

3шт.

5

533917C2

GAUGE

1шт.

6

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

9

892-11006

LOCK WASHER,M6

4шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

11

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

87716547

TUBE,3" OD x 4" L

1шт.

15

87716548

AIR HOSE,76.20 mm ID x 101.60 mm, SAE 20R4 Class D-1 Or SAE 20R4 Class E

1шт.

16

87716536

AIR CLEANER

1шт.

Cut from 414365C2

1шт.
