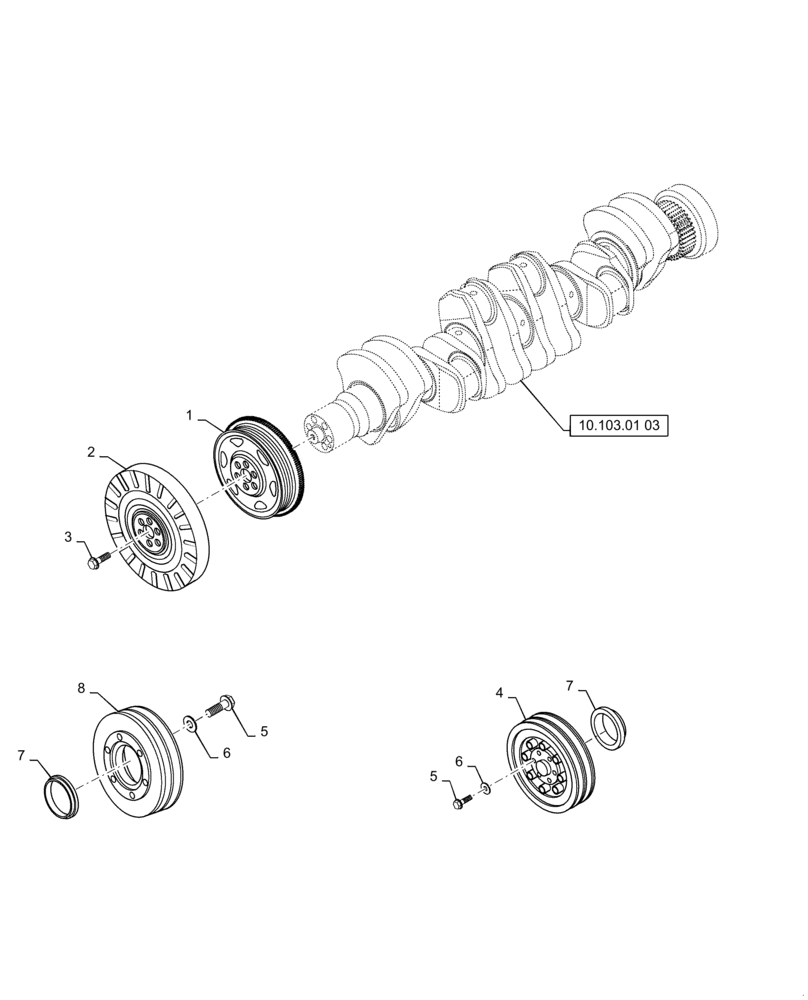

Запчасти Case IH P240 (10.110.01) - PULLEY - CRANKSHAFT (4898394) (Jun 7 2011 1:37PM) (10) - ENGINE

1

4896773

PULLEY

1шт.

2

4892893

DAMPER,250mm OD

1шт.

3

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

6шт.

4

4897928

PULLEY

Double "A" Groove, 7.4" Dia. Ring 84341451 Required if Damper 2855129 is Installed

1шт.

5

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

84341451

CENTERING RING

Used with 4897928 or 47460584 if Damper 2855129 is Installed

1шт.

8

47460584

CRANKSHAFT PULLEY

Pulley, Double "B" Groove 7" Dia. Ring 84341451 Required if Damper 2855129 is Installed

1шт.
