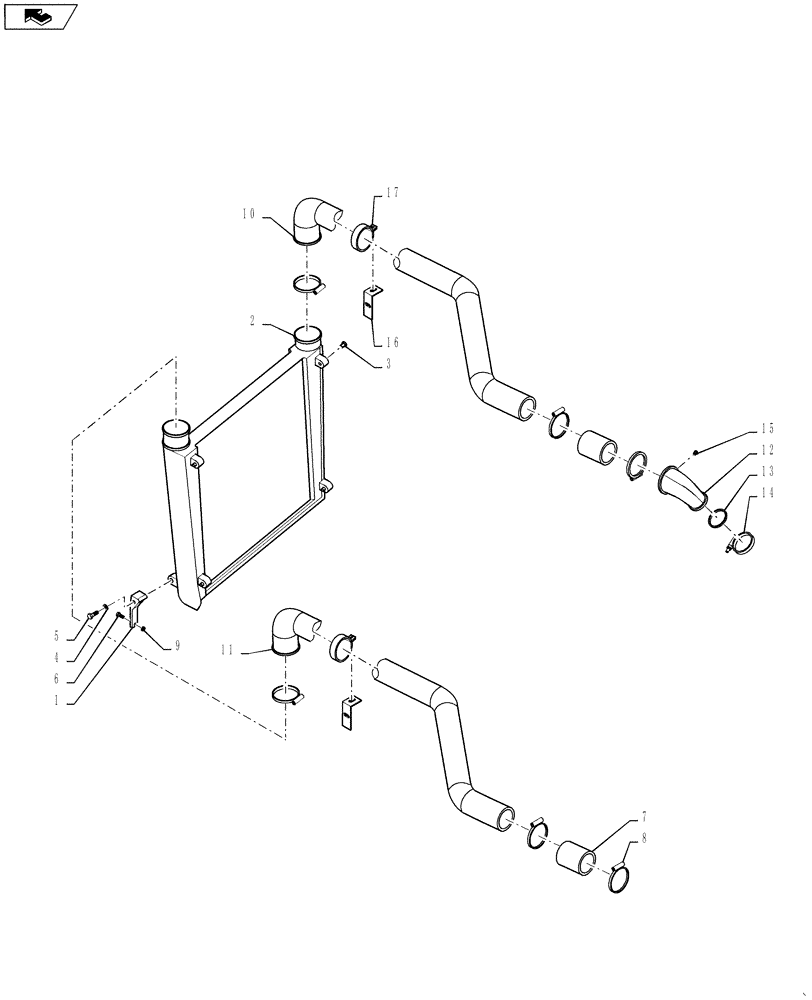

Запчасти Case IH P215 (10.408.04) - CHARGE AIR COOLER ASSEMBLY (10) - ENGINE

1

84397725

BRACKET

CAC Mounting

4шт.

2

437249A1

HEAT EXCHANGER

Air to Air Cooler

1шт.

3

434177A1

ISOLATOR

Mount

4шт.

4

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

4шт.

5

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.

6

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

8шт.

7

87405430

HOSE

4шт.

8

87416749

CLAMP,2.75" - 3.62", Worm Gear

8шт.

9

280136

NUT,3/8"-16, G8

8шт.

10

84397726

RIGID TUBE

Right

1шт.

11

84397727

RIGID TUBE

Left

1шт.

12

J918685

PIPE

Turbo Outlet Air Transfer

1шт.

13

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

14

J069053

CLAMP,66.54mm ID

1шт.

15

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

16

84397728

BRACKET

CAC Tube Support

2шт.

17

84397754

HANGER

3" Pipe

2шт.
