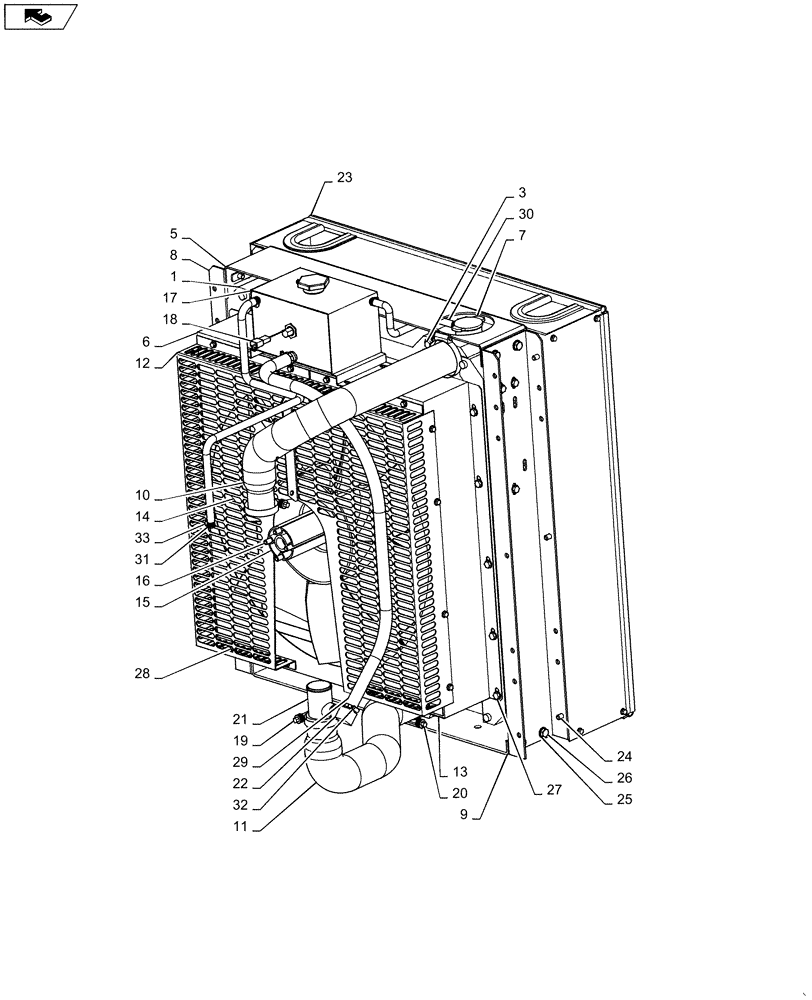

Запчасти Case IH P215 (10.406.01) - RADIATOR ASSEMBLY (10) - ENGINE

1

131751A2

RADIATOR

1шт.

2

214389

PLUG,3/4" - 16 ORB

1шт.

3

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

4

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

5

84397442

SUPPORT

Upper Radiator

1шт.

6

84397444

SHROUD

Fan

1шт.

7

253858A1

PLUG

Radiator Cap

1шт.

8

84397446

SUPPORT

Left and Right

2шт.

9

84397449

SUPPORT

Lower Radiator

1шт.

10

84397452

RADIATOR HOSE

Top

1шт.

11

84397454

RADIATOR HOSE

Lower

1шт.

12

84397456

GUARD

Fan, Left

1шт.

13

84397457

GUARD

Fan, Right

1шт.

14

87416399

FAN

1.5 x 150mm

1шт.

15

84397459

SPACER

Fan 125mm

1шт.

16

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

4шт.

17

87707874

TANK

1шт.

18

84397755

TEMPERATURE SWITCH

Coolant Level

1шт.

19

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

20

L115548

CLAMP,57.15mm - 79.38mm

2шт.

21

84397458

TUBE

Lower Radiator

1шт.

22

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

23

NSS

NOT SOLD SEPARAT

Air Baffle Assembly, See Fig 10.406.02

1шт.

24

87441708

NUT

Nutsert

26шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

26

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

8шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

16шт.

28

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

16шт.

29

364360C2

LARGE HOSE

HOSE,LARGE

1шт.

30

414365C2

HOSE,7.94mm ID x 7620mm L, SAE 30R7

1шт.

31

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

1шт.

32

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

33

86625022

HOSE CLAMP,6.3mm - 15.7mm

4шт.
