(10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504080617) (Jun 7 2011 2:03PM)

Запчасти Case IH P215 (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504080617) (Jun 7 2011 2:03PM) (10) - ENGINE

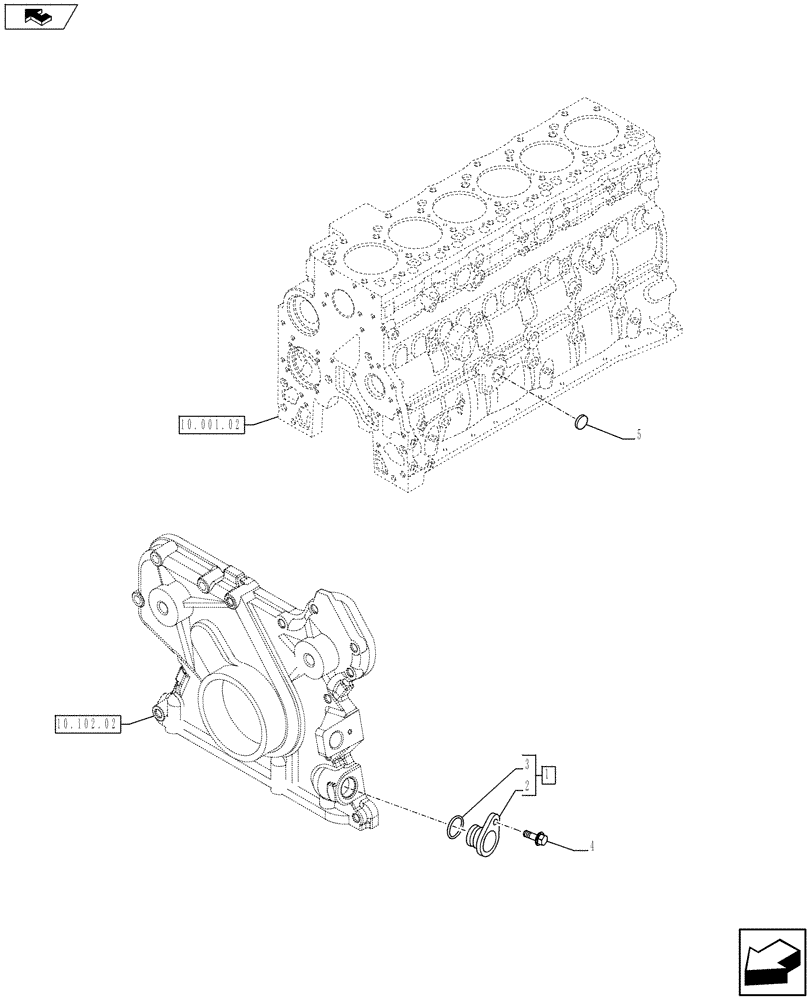

Схема запчастей Case IH P215 - (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504080617) (Jun 7 2011 2:03PM) (10) - ENGINE
2
home
4
5
10.102.02
3
10.001.02
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

944030889

CAP

ASSY

1шт.

2

504058975

PLUG

1шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

16597224

SCREW,Hex, M6 x 18mm, Cl 8.8

1шт.

5

4895037

EXPANSION PLUG,32.03mm

1шт.
