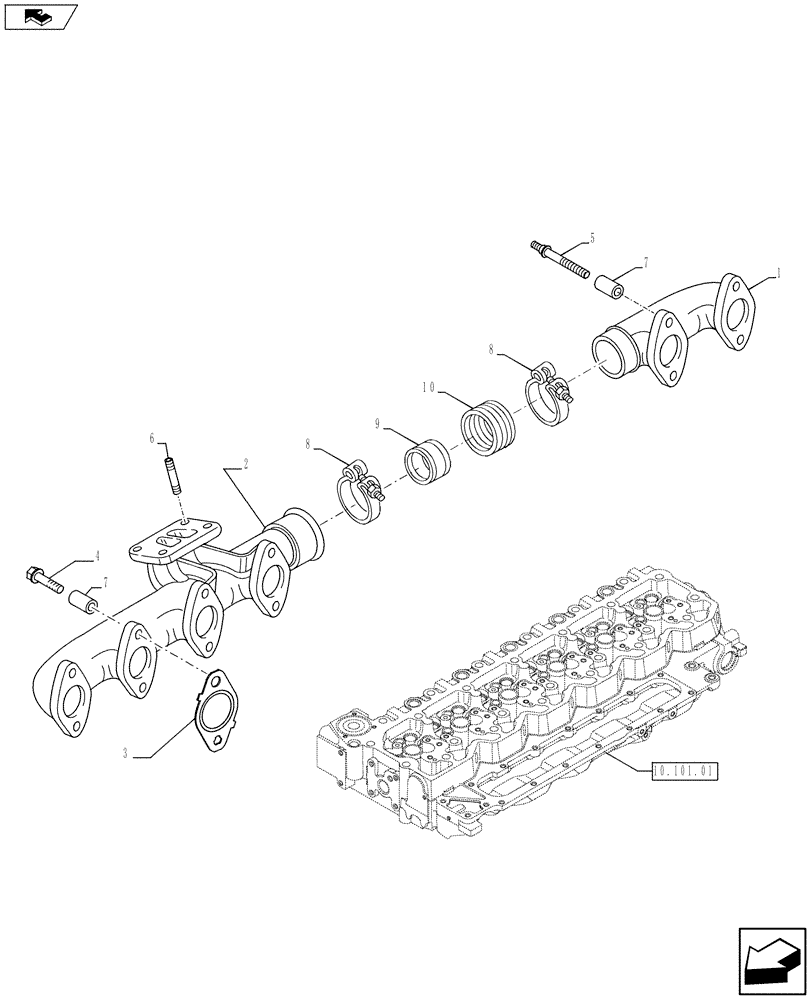

Запчасти Case IH P215 (10.254.05) - EXHAUST MANIFOLD (504064112) (Jun 7 2011 2:03PM) (10) - ENGINE

1

4897890

EXHAUST MANIFOLD

1шт.

2

8033720

EXHAUST MANIFOLD

1шт.

3

2853800

MANIFOLD GASKET,1.4mm Thk

6шт.

4

2852744

SCREW,Flng, M10 x 1.5 x 65mm

9шт.

5

4895219

STUD,Hex Flng, M10 x 65mm, Cl 10.9

3шт.

6

4899085

STUD,M10 x 1.5 x 42mm

4шт.

7

4895336

SPACER

12шт.

8

4899085

STUD,M10 x 1.5 x 42mm

2шт.

9

2859382

LOCKING RING

1шт.

10

2859383

LOCKING RING

1шт.
