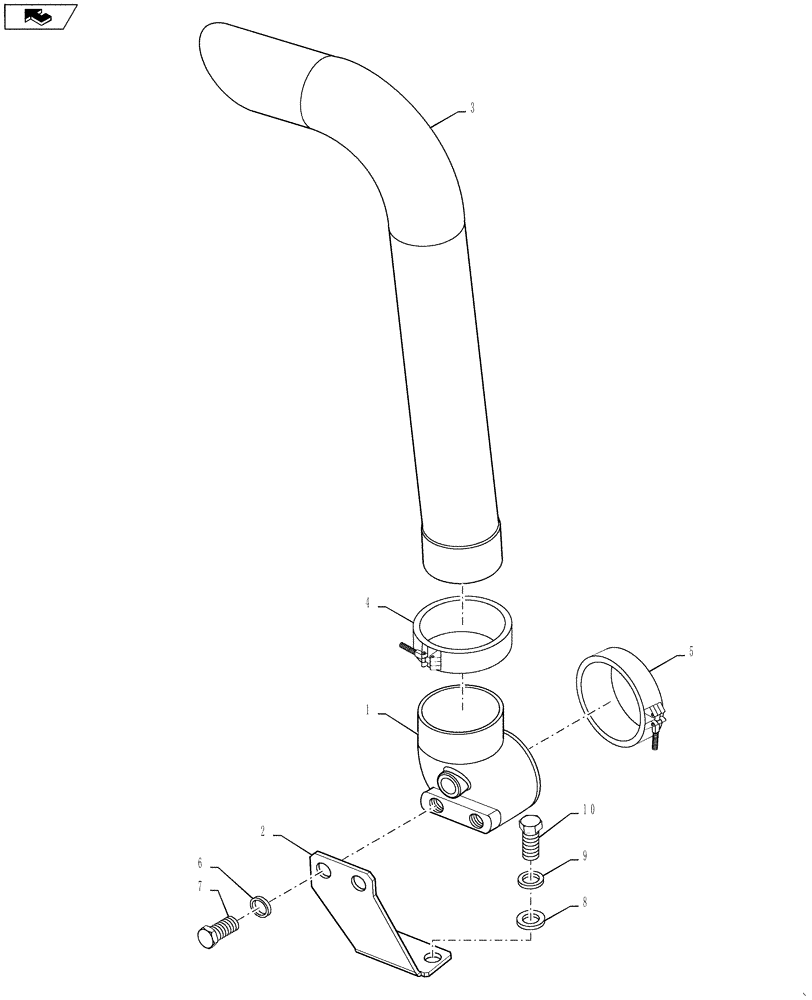

Запчасти Case IH P215 (10.254.02) - EXHAUST SYSTEM (10) - ENGINE

1

87416402

ELBOW

1шт.

2

84398295

BRACKET

Exhaust Support

1шт.

3

87444549

EXHAUST SYSTEM PIPE

3" x 85 degrees

1шт.

4

190981A1

CLAMP,76.2mm ID

3" Muffler

1шт.

5

A170467

CLAMP,72mm ID

Hose, 3.18" V-Band

1шт.

6

86589279

BELLEVILLE WASHER,M10 Bolt Size x 24mm OD x 3mm Thk

2шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

892-11008

LOCK WASHER,8mm ID

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.
