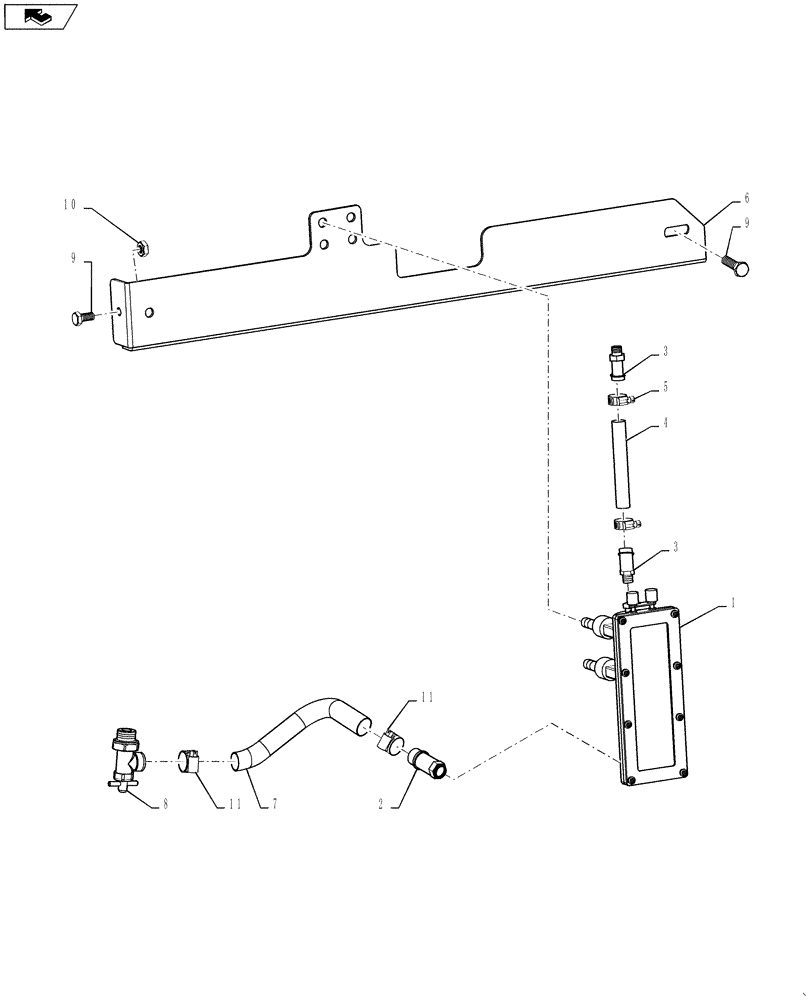

Запчасти Case IH P215 (10.223.01) - OIL LEVEL SHUTDOWN (10) - ENGINE

1

1347701C1

SWITCH ASSY

Oil Level Shutdown

1шт.

2

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

3

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

2шт.

4

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

3/8" ID

1шт.

5

244358

HOSE CLIP,0.44" - 0.78"

2шт.

6

84398439

BRACKET

Oil Level Option

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

87105048

DRAINCOCK/TAP SUPPLY

Oil Drain

1шт.

9

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

2шт.
