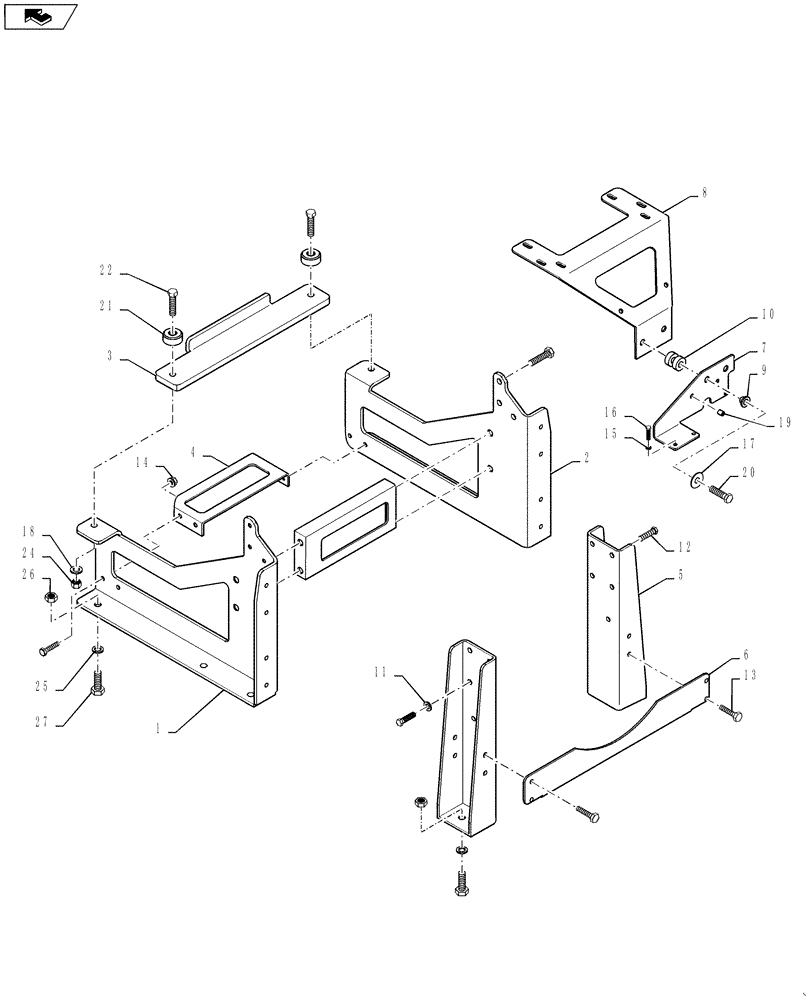

Запчасти Case IH P215 (10.012.01) - ENGINE AND RADIATOR MOUNTING (10) - ENGINE

1

84397029

SUPPORT

Left Front Mount

1шт.

2

84397031

SUPPORT

Right Front Mount

1шт.

3

84397032

SUPPORT

Front Lower Mount

1шт.

4

84397033

SUPPORT

Engine, Radiator, X- Channel

2шт.

5

84397034

SUPPORT

Rear Engine Mount

2шт.

6

84397035

SUPPORT

Engine Mounting X- Support

1шт.

7

84397036

SUPPORT

Isolator Mount

2шт.

8

84397038

SUPPORT

Radiator Support Top

1шт.

9

87710612

ISOLATOR

Mount

2шт.

10

84397039

ISOLATOR

1шт.

11

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

14шт.

12

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

14шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

12шт.

14

247780

SERRATED NUT,Flg, USR, 3/8"-16

14шт.

15

892-11010

LOCK WASHER,M10

2шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

17

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

2шт.

18

86624150

WASHER,0.53" ID x 2" OD x 0.06" Thk

2шт.

19

NSS

NOT SOLD SEPARAT

3шт.

20

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

21

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

22

87490782

BOLT

2шт.

23

892-11012

LOCK WASHER,M12

2шт.

24

87632742

NUT

2шт.

25

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

8шт.

26

87672195

NUT

8шт.

27

86508732

BOLT,5/8"-11 x 2.391" Cl 8

8шт.
