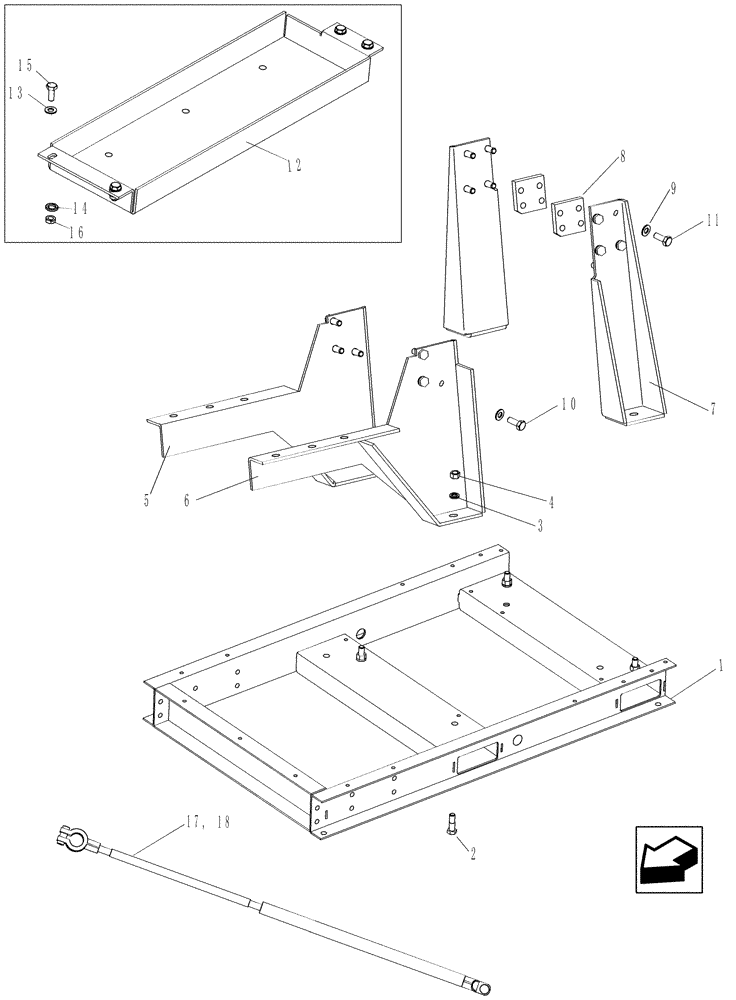

Запчасти Case IH P170 (09-03) - ENGINE MOUNT AND BATTERY TRAY (09) - CHASSIS/ATTACHMENTS

1

84173850

SKID PLATE

1шт.

2

86508732

BOLT,5/8"-11 x 2.391" Cl 8

4шт.

3

492-21062

LOCK WASHER,5/8"

4шт.

4

86625068

NUT,5/8"-11, G8

4шт.

5

87716439

SUPPORT

Right

1шт.

6

87716440

SUPPORT

Left

1шт.

7

87716443

FOOT

Rear

2шт.

8

87716477

FOOT

2шт.

9

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

10шт.

10

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

10шт.

11

300512

BOLT,Hex, M12 x 55mm, Cl 8.8

4шт.

12

87694416

BATTERY TRAY

1шт.

13

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

87745688

CABLE

1шт.

18

87745689

CABLE

1шт.
