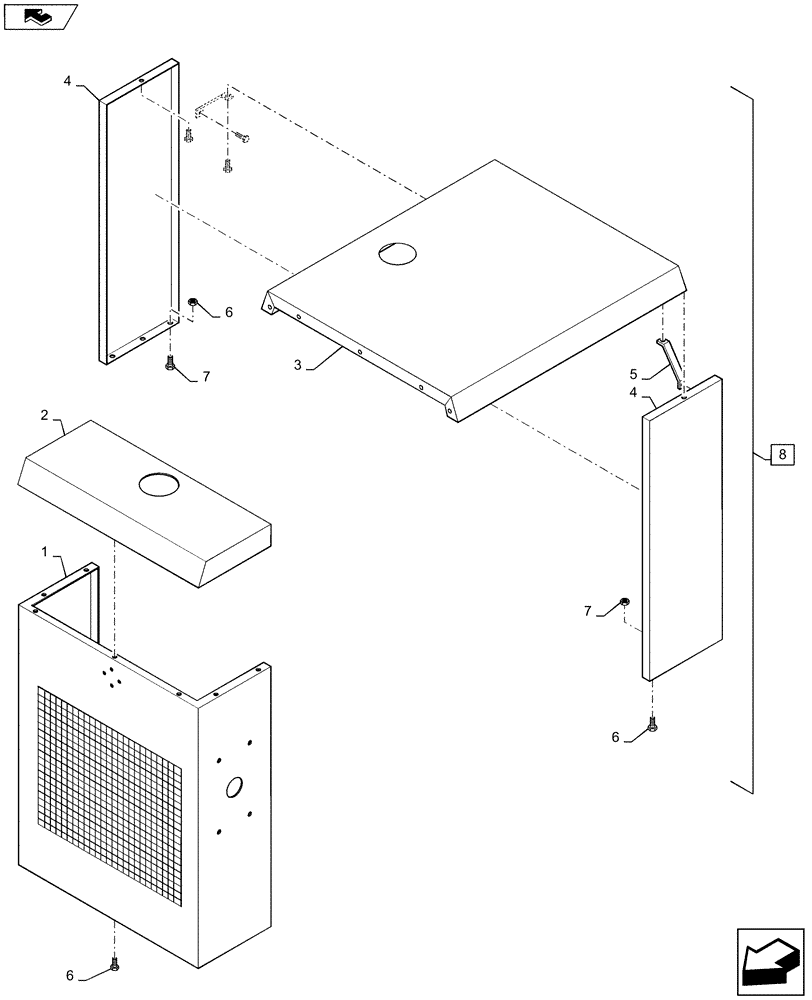

Запчасти Case IH P170 (09-01) - HOOD ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87709932

GRILLE

FRONT

1шт.

2

87708279

GRILLE

FRONT HOOD

1шт.

3

87707872

ENGINE HOOD PANEL

REAR

1шт.

4

87694418

SUPPORT

PANEL, REAR SIDE

2шт.

5

87420722

BRACE

HOOD, SUPPORT

2шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

33шт.

7

87441708

NUT

SPECIAL

35шт.

8

87719786

ENGINE HOOD PANEL

REAR ASSY, INCL 3 - 7

1шт.
