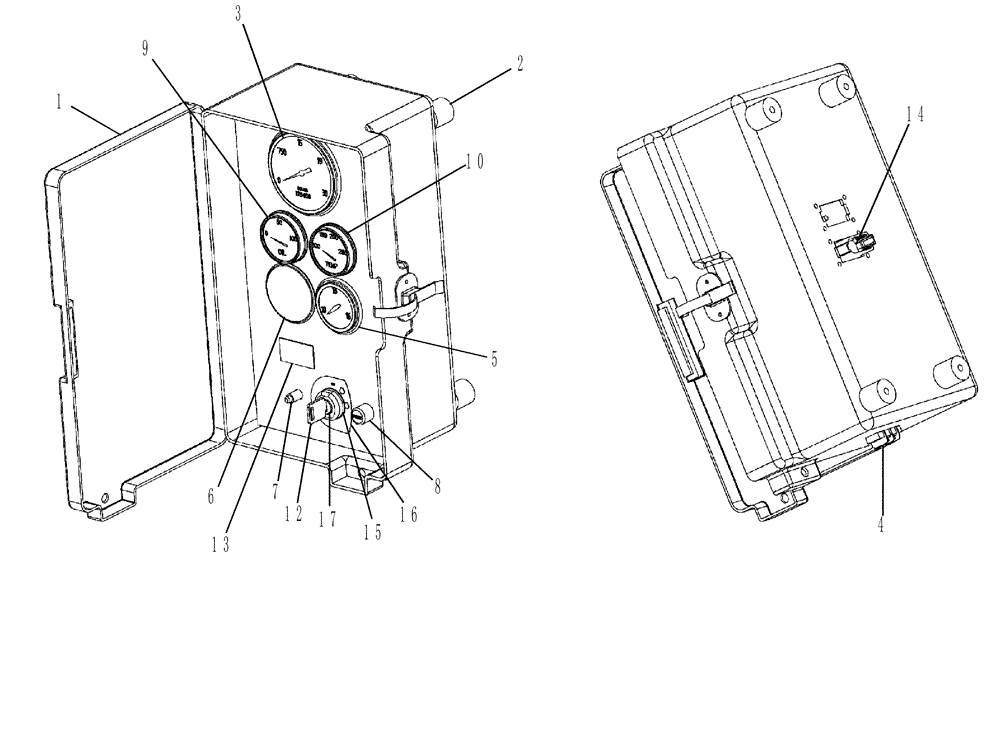

Запчасти Case IH P170 (04-02) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

87708281

CONTROL PANEL

STEEL

1шт.

1

84294040

BOXED PANEL

Instrument - Wire Harness includes inline diode, NSS PLASTIC

1шт.

2

87708282

ISOLATOR

Mount, Instrument Panel

4шт.

3

84293165

TACHOMETER

Hourmeter

1шт.

4

84294087

TERMINAL CONNECTOR

1шт.

5

87708275

GAUGE

Voltmeter, 10-16 Volt

1шт.

6

84294044

PLUG

2-1/8"

1шт.

7

1347699C1

BUTTON

E Stop Switch

1шт.

8

84294046

FUSE HOLDER

Snap-In

1шт.

9

84294047

GAUGE

1шт.

10

84294065

GAUGE

Temperature

1шт.

11

590420

FUSE

15 amp, Glass Type

1шт.

12

84294508

IGNITION KEY

1шт.

13

84294071

PLUG

Rocker Switch

1шт.

14

84294074

WIRE HARNESS

Instrument Panel - Wire Harness includes inline diode, NSS

1шт.

15

84294085

WASHER

1 x 1.25 x .035

1шт.

16

87656848

DECAL

Key Switch

1шт.

17

D134737

IGNITION SWITCH

1шт.
