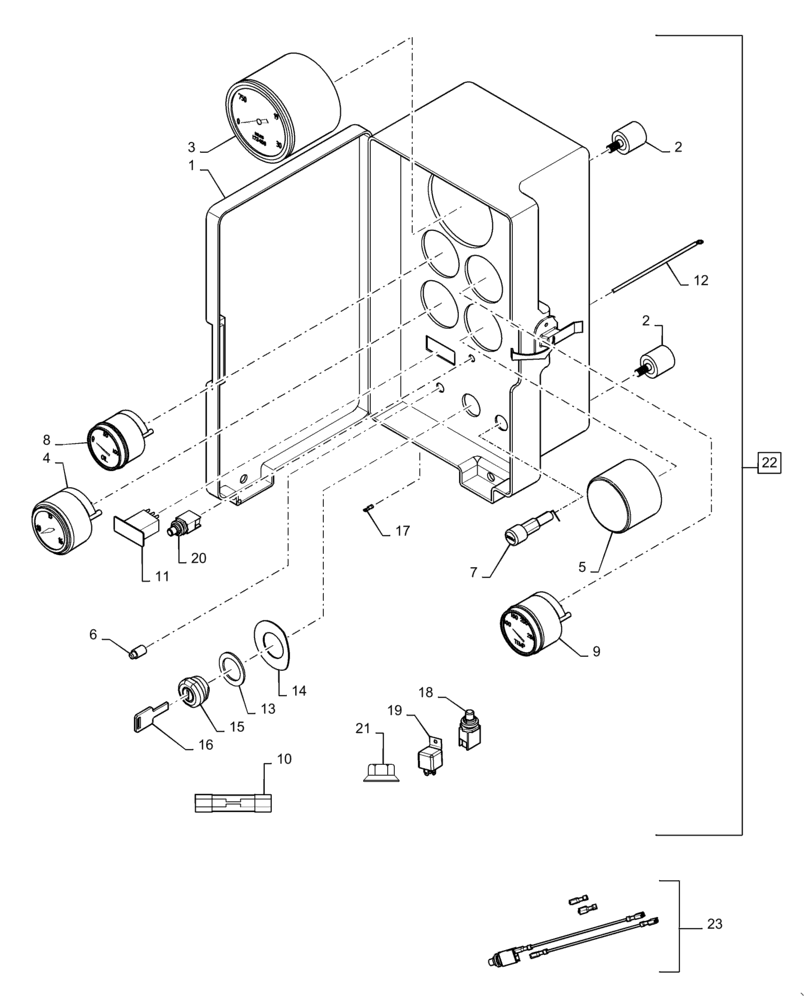

Запчасти Case IH P170 (04-02[01]) - CONTROL PANEL (04) - ELECTRICAL SYSTEMS

1

47511253

PANEL

Box

1шт.

2

87708282

ISOLATOR

Mount

4шт.

3

84293165

TACHOMETER

Hourmeter

1шт.

4

47507767

GAUGE

Volt Meter 10 - 16 Volt

1шт.

5

84294044

PLUG

2 1/8"

1шт.

6

1347699C1

BUTTON

Switch, E Stop Button

1шт.

7

1347753C1

HOLDER

Snap-In

1шт.

8

84294047

GAUGE

1шт.

9

84294065

GAUGE

Temp

1шт.

10

590420

FUSE

15A

1шт.

11

86539709

PLUG

Rocker Switch

1шт.

12

84294074

WIRE HARNESS

Wire Harness, Internal

1шт.

13

84294085

WASHER

1 x 1.25 x .035

1шт.

14

87656848

DECAL

Key Switch

1шт.

15

9703814

IGNITION SWITCH

1шт.

16

9703810

IGNITION KEY

1шт.

17

84294087

TERMINAL CONNECTOR

1шт.

18

84412526

PUSH BUTTON

1шт.

19

1983420C2

RELAY

Bosch

2шт.

20

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

Fender, .25 x 1.00

4шт.

21

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

22

84286050

CONTROL PANEL

Incl 1 - 21

1шт.

23

84409131

SERVICE KIT

Shutdown Override (Units Not Built With 84412526 Switch)

1шт.
