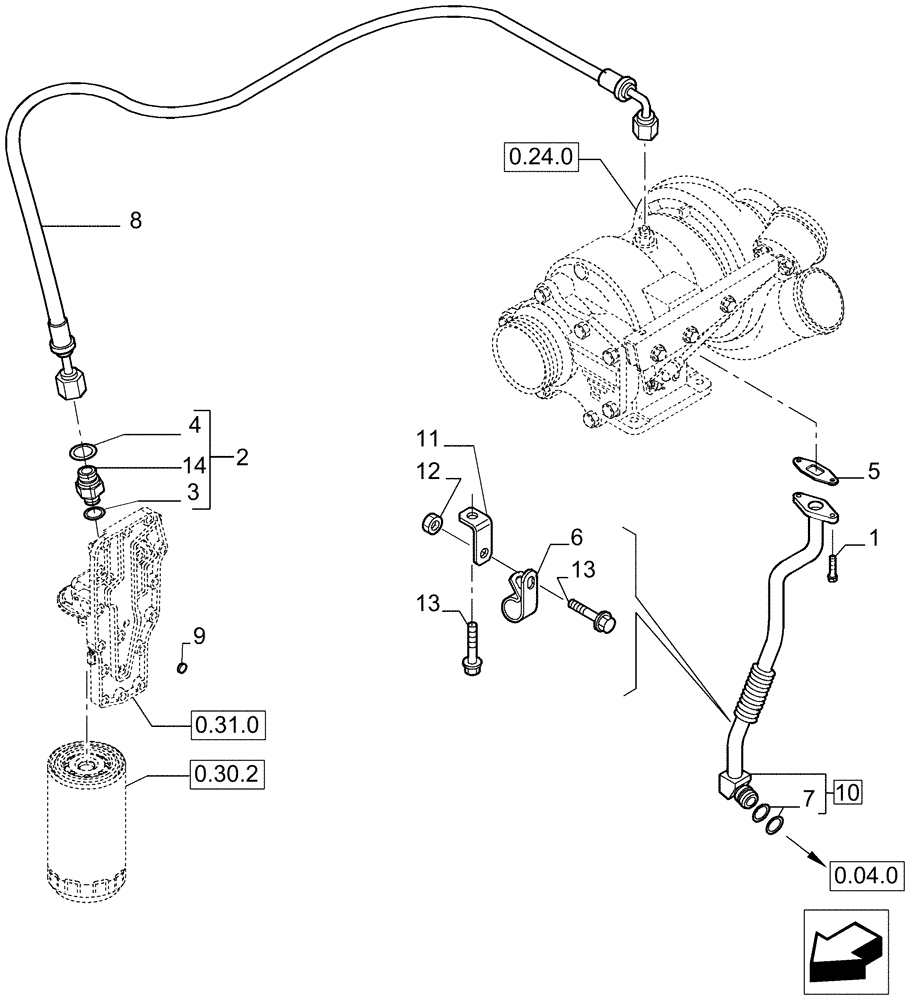

Запчасти Case IH P170 (0.30.5[01]) - PIPING - ENGINE OIL (02) - ENGINE

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

- Assy, Incl. 3, 4, 14

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

1шт.

6

4896893

CLAMP,20mm W

1шт.

7

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

8

4895171

HOSE

- ASSY

1шт.

9

4895089

PLUG,0.886" L

1шт.

10

2852384

PIPE

Oil Drain

1шт.

11

2852390

BRACKET

1шт.

12

2852389

FLANGE NUT

1шт.

13

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

2шт.

14

76191774

HYD CONNECTOR

1шт.

15

2852380

BRACKET

1шт.

16

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.

17

4895462

CLAMP

1шт.

18

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.
