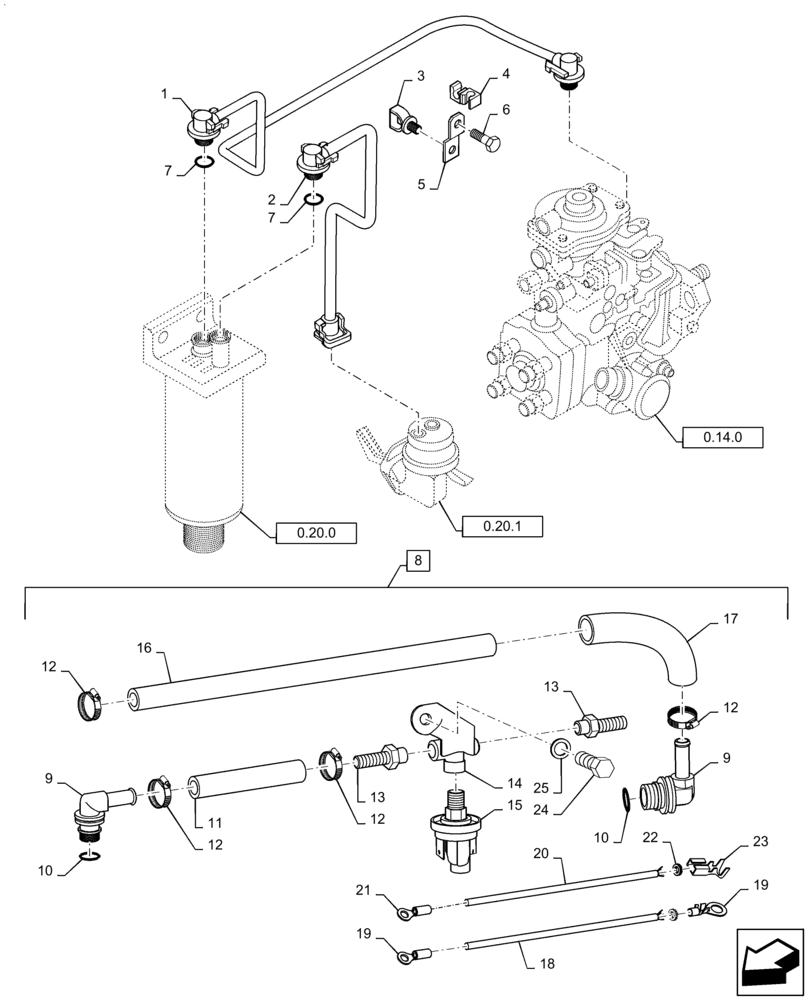

Запчасти Case IH P170 (0.20.3[01]) - FUEL TUBE (02) - ENGINE

1

2830470

INJECTION PIPE

Assy

1шт.

2

2830473

TUBE

Assy, Includes clip NSS

1шт.

3

2852111

CLIP

1шт.

4

2852449

CLIP,8mm ID

1шт.

5

2852457

CLAMP

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

7

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

8

84606870

SERVICE KIT

Fuel Pressure, Used in Place of 2830470, Kit Incl 9 - 25, Start Serial: (DJA0024222)

1шт.

9

87414560

90 ELBOW

2шт.

10

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

11

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Cut to 90 mm

1шт.

12

86625022

HOSE CLAMP,6.3mm - 15.7mm

4шт.

13

87575678

HYD CONNECTOR

2шт.

14

NSS

NOT SOLD SEPARAT

Bracket Incl in 8

1шт.

15

84606881

PRESSURE SWITCH

Fuel Pressure 2 PSI

1шт.

16

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Fuel Bulk, Cut to 560 mm

1шт.

17

47368717

HEATER HOSE

Replaces Unicoil Spring, If Equipped

1шт.

18

NSS

NOT SOLD SEPARAT

Wire, Black 16 Awg, 160 mm Incl in 8

1шт.

19

225058C1

TERMINAL CONNECTOR

# 8 Ring

2шт.

20

NSS

NOT SOLD SEPARAT

Wire, Black 16 Awg, 400 mm Incl in 8

1шт.

21

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

Connector, 5/16 Ring

1шт.

22

225125C1

SEAL

Terminal

1шт.

23

87680656

CONTACT

Terminal, Packard Metripack 280

1шт.

24

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.
