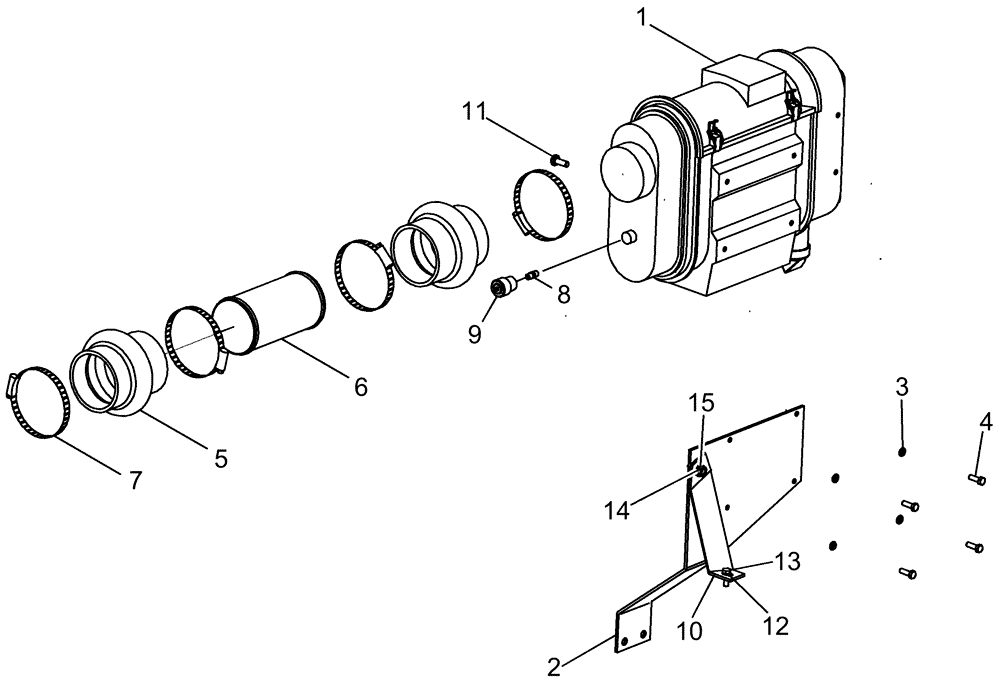

Запчасти Case IH P170 (02-03) - AIR CLEANER AND MOUNTING (02) - ENGINE

1

87716549

AIR CLEANER

1шт.

See Figure 02-04

1шт.

2

87716537

BRACKET

1шт.

3

80681

LOCK WASHER,5/16"

4шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

5

S89590

HOSE,4.00" ID x 5.25"

2шт.

6

87716539

TUBE,3.904" ID x 4" OD x 7.5" L

1шт.

7

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

8

86976679

ADAPTER

1шт.

9

533917C2

GAUGE

Air restriction

1шт.

10

87716538

BRACKET, SUPPORTING

1шт.

11

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

12

892-11008

LOCK WASHER,8mm ID

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.
