Запчасти Case IH P170 (0.08.4) - CRANKSHAFT PULLEY (02) - ENGINE

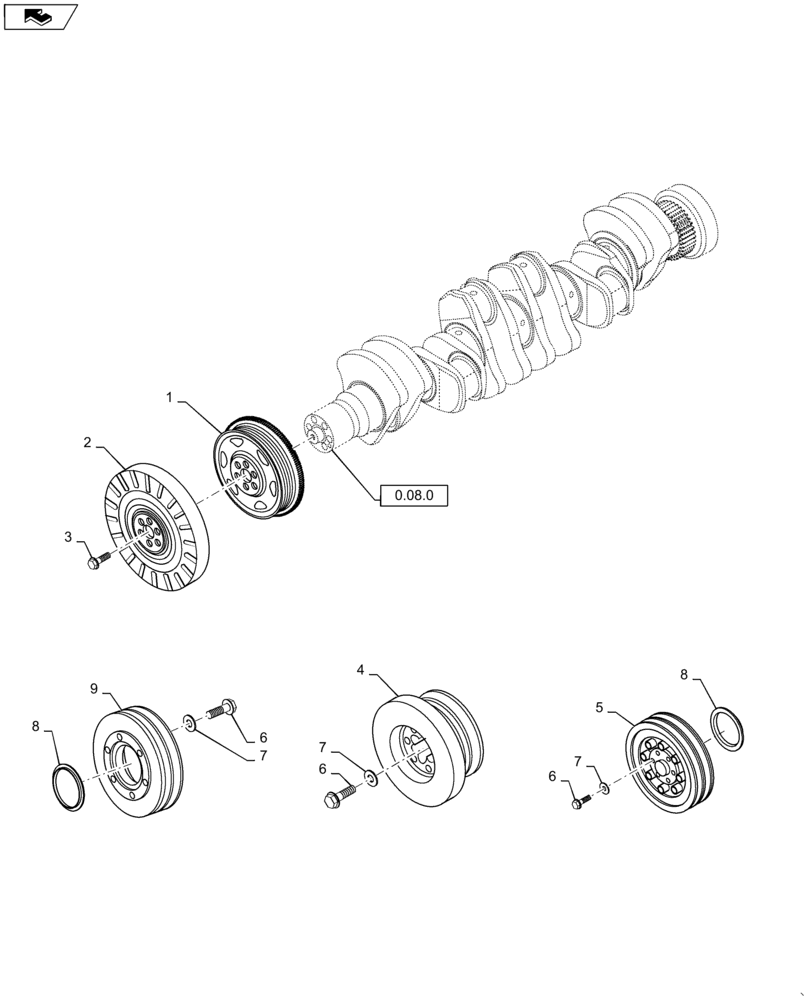

Схема запчастей Case IH P170 - (0.08.4) - CRANKSHAFT PULLEY (02) - ENGINE
8
4
6
7
7
3
6
8
home
9
7
1
5
0.08.0
6
2

Артикул

Название

Примечание

Количество

1

4896773

PULLEY

1шт.

2

2855129

DAMPER

1шт.

3

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

M10X40

6шт.

4

2852900

DAMPER

With Double "A" Groove Pulley 7.4" Dia.

1шт.

5

4897928

PULLEY

Double "A" Groove, 7.4" Dia. Ring 84341451 Required if Damper 2855129 is Installed

1шт.

6

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

M10 x 35; 8.8

6шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

8

84341451

CENTERING RING

Used with 4897928 of 47460584 if Damper 2855129 is Installed

1шт.

9

47460584

CRANKSHAFT PULLEY

Pulley, Double "B" Groove 7" Dia. Ring 84341451 Required if Damper 2855129 is Installed

1шт.

Выбрано товаров: 9
