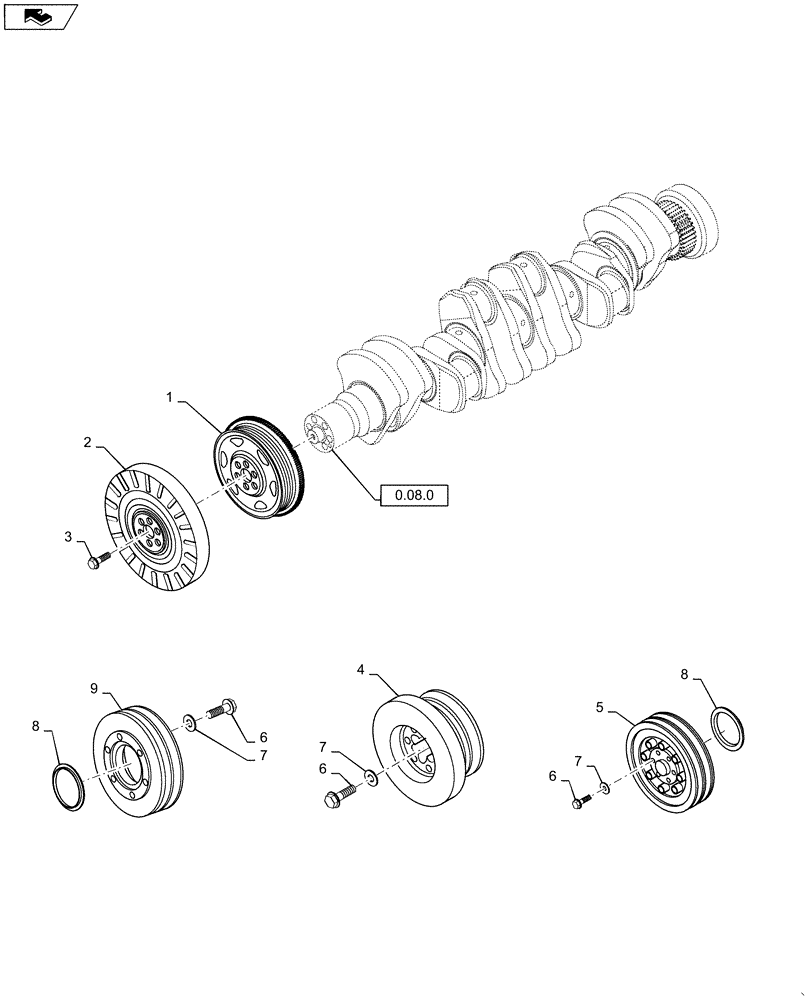

Запчасти Case IH P170 (0.08.4[01]) - PULLEY - CRANKSHAFT (02) - ENGINE

1

4896773

PULLEY

1шт.

2

2855129

DAMPER

1шт.

3

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

M10X40

6шт.

4

2852900

DAMPER

With Double "A" Groove Pulley 7.4" Dia.

1шт.

5

4897928

PULLEY

Double "A" Groove 7.4" Dia. Ring 84341451 Required if Damper 2855129 is Installed

1шт.

6

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

M10 x 1.25 x 35

6шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

8

84341451

CENTERING RING

Used with 4897928 or 47460584 if Damper 2855129 is Installed

1шт.

9

47460584

CRANKSHAFT PULLEY

Pulley, Double "B" Groove 7" Dia. Ring 84341451 Required if Damper 2855129 is Installed

1шт.
