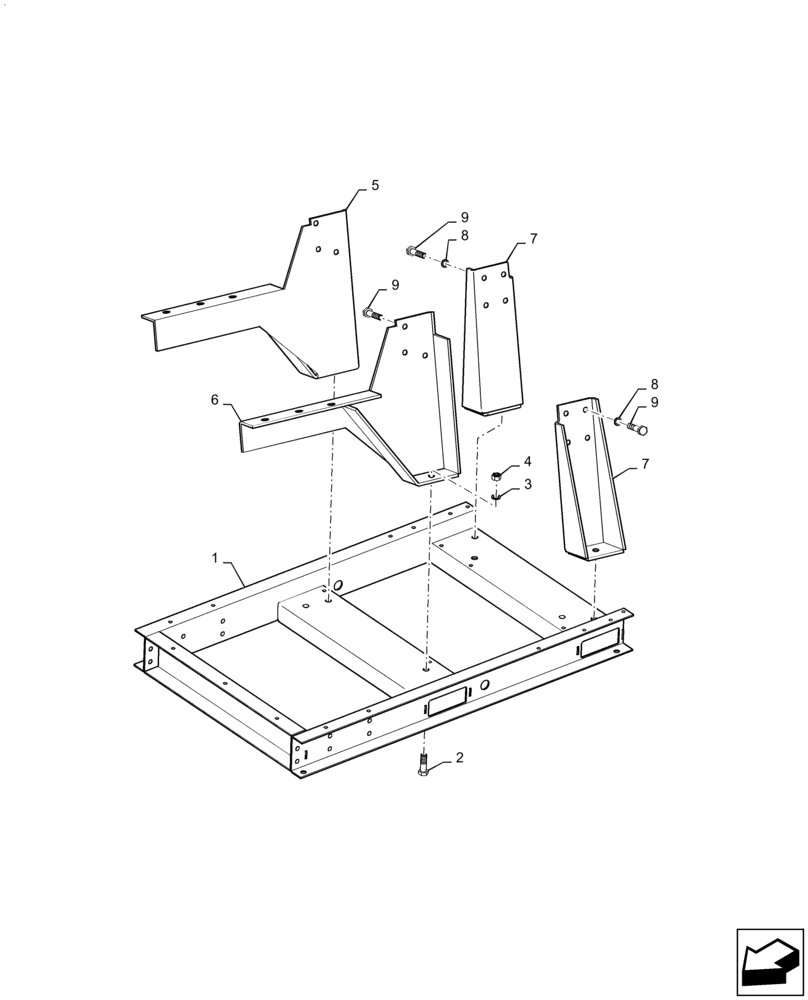

Запчасти Case IH P140 (90.012.01) - SKID PLATE, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

Not Service Separately Skid Plate

1шт.

2

86508732

BOLT,5/8"-11 x 2.391" Cl 8

Gr 8

4шт.

3

492-21062

LOCK WASHER,5/8"

4шт.

4

86625068

NUT,5/8"-11, G8

Gr 8

4шт.

5

NSS

NOT SOLD SEPARAT

Not Service Separately Support, Right

1шт.

6

NSS

NOT SOLD SEPARAT

Not Service Separately Support, Left

1шт.

7

NSS

NOT SOLD SEPARAT

Not Service Separately Foot, Rear

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

14шт.

9

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

14шт.
