Запчасти Case IH P140 (10.406.01) - COOLING SYSTEM AND DEAERATION TANK (10) - ENGINE

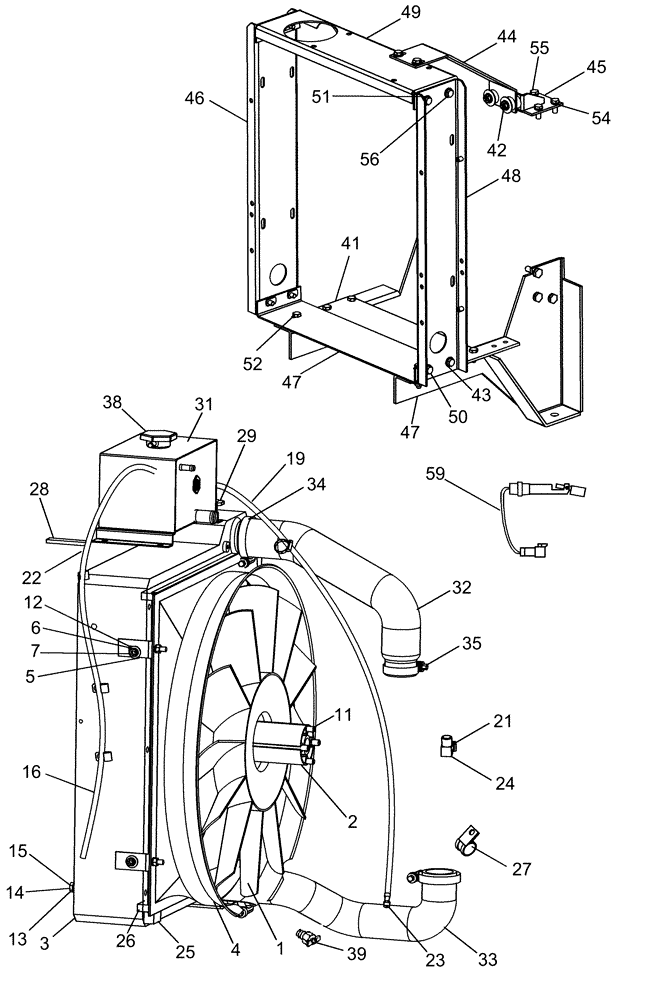

Схема запчастей Case IH P140 - (10.406.01) - COOLING SYSTEM AND DEAERATION TANK (10) - ENGINE
48
42
19
47
39
24
7
27
16
51
1
35
29
45
31
52
56
23
15
12
4
54
25
5
11
47
28
46
14
59
44
41
50
32
34
43
33
2
22
21
55
6
49
26
13
3
38

Артикул

Название

Примечание

Количество

1

437611A1

FAN

12 Blade

1шт.

2

86998478

SPACER

Fan

1шт.

3

244295A1

RADIATOR

1шт.

See Figure 02-02

1шт.

4

187089A2

DEFLECTOR

1шт.

5

277896A1

BRACKET

4шт.

6

80681

LOCK WASHER,5/16"

8шт.

7

9635082

NUT,5/16" - 18, Gr 5

8шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

(Not Shown)

5шт.

9

892-11010

LOCK WASHER,M10

(Not Shown)

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

(Not Shown)

1шт.

11

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

4шт.

12

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

6шт.

16

87442013

HOSE,80.00 mm

42 Inch

1шт.

Cut From 414365C2

1шт.

17

303950A1

RADIATOR HOSE,7.90 mm ID x 76.20 mm, SAE J20R4

(Not Shown)

1шт.

18

872436R1

HOSE CLAMP,#6, 3/8", Spring

(Not Shown)

1шт.

19

277644A1

HOSE

30 Inch

1шт.

Cut From 414365C2

1шт.

20

87442014

HOSE,745.00 mm

18 Inch, (Not Shown)

1шт.

Cut From 414365C2

1шт.

21

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

22

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

23

241173A1

FITTING

0.120 1/8 NPT x 5/16 Hose

1шт.

24

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

1шт.

25

190561A2

SEAL

Radiator

2шт.

26

190562A2

SEALING STRIP,30mm W x 546mm L x 12.7mm Thk

Shroud

2шт.

27

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

28

292029

SPECIAL TOOL

1шт.

29

253858A1

PLUG

1шт.

30

214389

PLUG,3/4" - 16 ORB

(Not Shown)

1шт.

31

87707874

TANK

Deaeration

1шт.

32

87717420

RADIATOR HOSE,12.97"

Upper

1шт.

33

87717421

RADIATOR HOSE,Lower, 1.97" ID, 2.44" ID x 14.17"

Lower

1шт.

34

L115548

CLAMP,57.15mm - 79.38mm

3шт.

35

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1шт.

36

J923527

CLAMP

14 mm, (Not Shown)

4шт.

37

80680

LOCK WASHER,3/8 0.381 CST ZND

(Not Shown)

4шт.

38

A170241

RADIATOR CAP

15 PSI

1шт.

39

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

40

277647A1

HOSE

3/4 Inch x 40 Inch, (Not Shown)

1шт.

41

87710611

BRACKET, SUPPORTING

Lower

1шт.

42

87710612

ISOLATOR

Upper and Lower Radiator Assembly

4шт.

43

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

4шт.

44

87716441

BRACKET, SUPPORTING

Upper

1шт.

45

87716442

BRACKET

1шт.

46

87716444

SUPPORT

Right

1шт.

47

87716445

BASE

Lower

1шт.

48

87716446

SUPPORT

Left

1шт.

49

87716456

COVER PLATE

Upper

1шт.

50

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

51

492-11038

LOCK WASHER,3/8"

14шт.

52

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

2шт.

53

425-106

NUT,3/8"-16, Cl 5

(Not Shown)

2шт.

54

892-11010

LOCK WASHER,M10

3шт.

55

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

56

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

14шт.

57

247780

SERRATED NUT,Flg, USR, 3/8"-16

(Not Shown)

4шт.

58

87441708

NUT

(Not Shown)

4шт.

59

84134624

SENSOR

Coolant Level

1шт.

Выбрано товаров: 63
