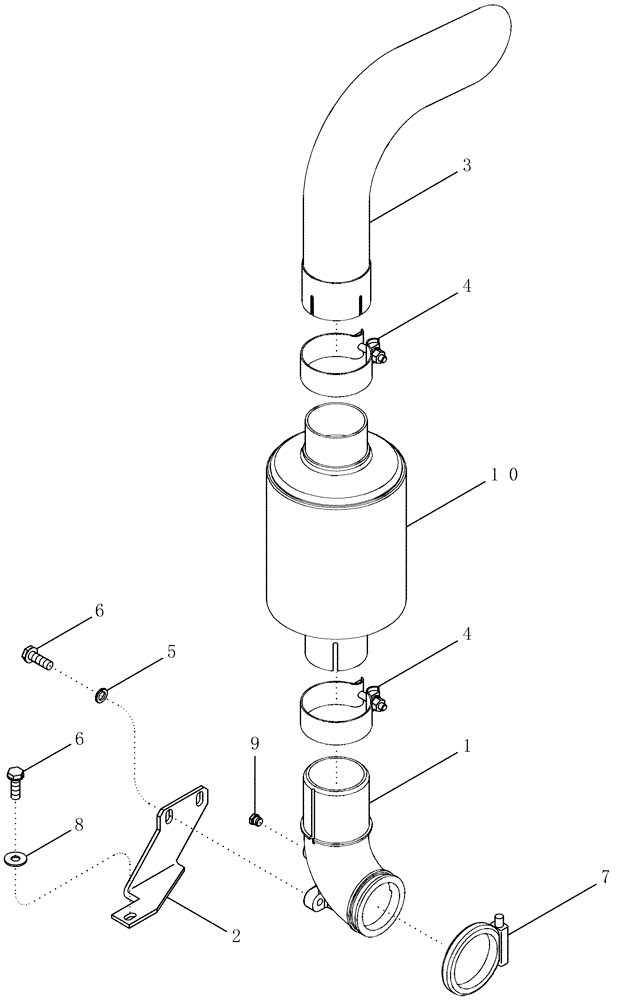

Запчасти Case IH P140 (10.254.05) - EXHAUST SYSTEM - WITH SPARK ARRESTER (10) - ENGINE

1

87416402

ELBOW

1шт.

2

87446469

BRACKET

1шт.

87452826

EXHAUST SYSTEM PIPE

Arrestor, Spark, Inc. 3, 4, 10

1шт.

3

87452275

EXHAUST SYSTEM PIPE

Extension, with Hood

1шт.

3

87452316

EXHAUST SYSTEM PIPE

Extension, without Hood

1шт.

4

190981A1

CLAMP,76.2mm ID

3 Inch

2шт.

5

86589279

BELLEVILLE WASHER,M10 Bolt Size x 24mm OD x 3mm Thk

2шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

7

A170467

CLAMP,72mm ID

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

86568834

PLUG,1/4" - 18 NPT

1шт.

10

A135430

ARRESTER

Spark

1шт.

11

892-11008

LOCK WASHER,8mm ID

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.
