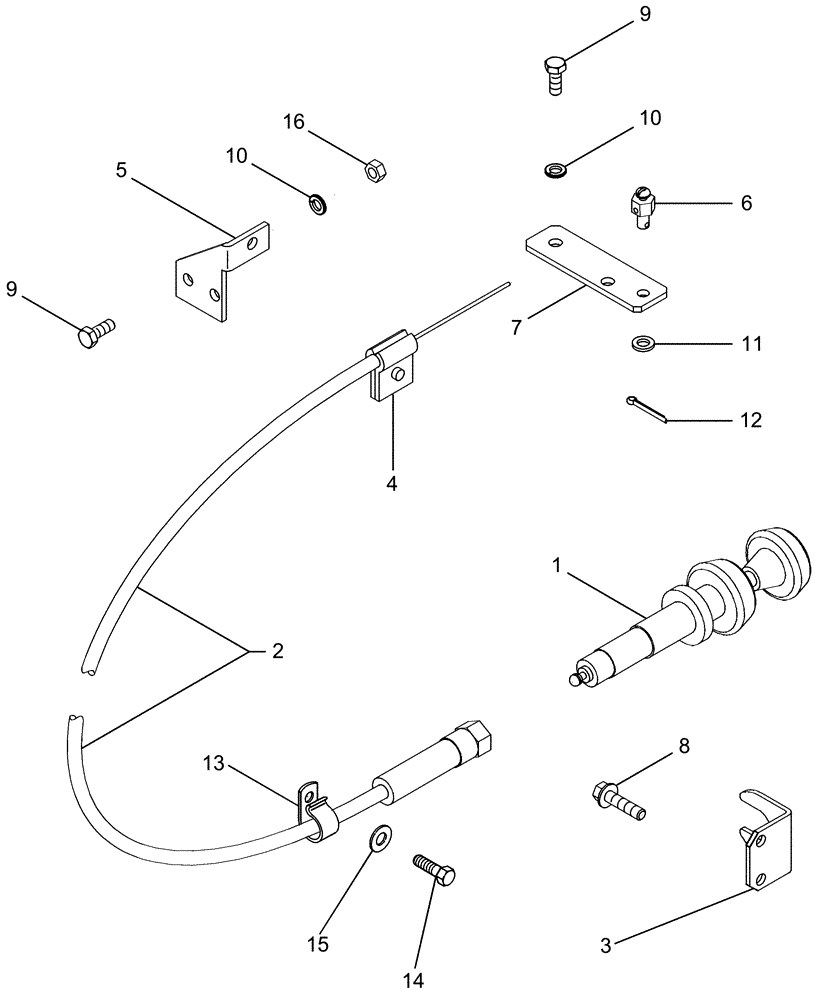

Запчасти Case IH P140 (10.220.01) - THROTTLE CONTROL (10) - ENGINE

1

87441696

HANDLE GRIP

Throttle Control

1шт.

2

87696409

CABLE

Throttle, 60 inch

1шт.

3

87710664

BRACKET

Mounting, Throttle Cable

1шт.

4

87441698

CLAMP

Cable Head

1шт.

5

87441695

BRACKET

Mounting, Throttle Cable End

1шт.

6

309762A1

PIVOT

Throttle Cable

1шт.

7

87441692

BRACKET, SUPPORTING

Throttle Lever

1шт.

8

87327156

BOLT

2шт.

9

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

10

892-11006

LOCK WASHER,M6

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

1шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

15

87016617

LOCK WASHER,M8

1шт.

16

9706755

NUT,M6, Cl 8

1шт.
