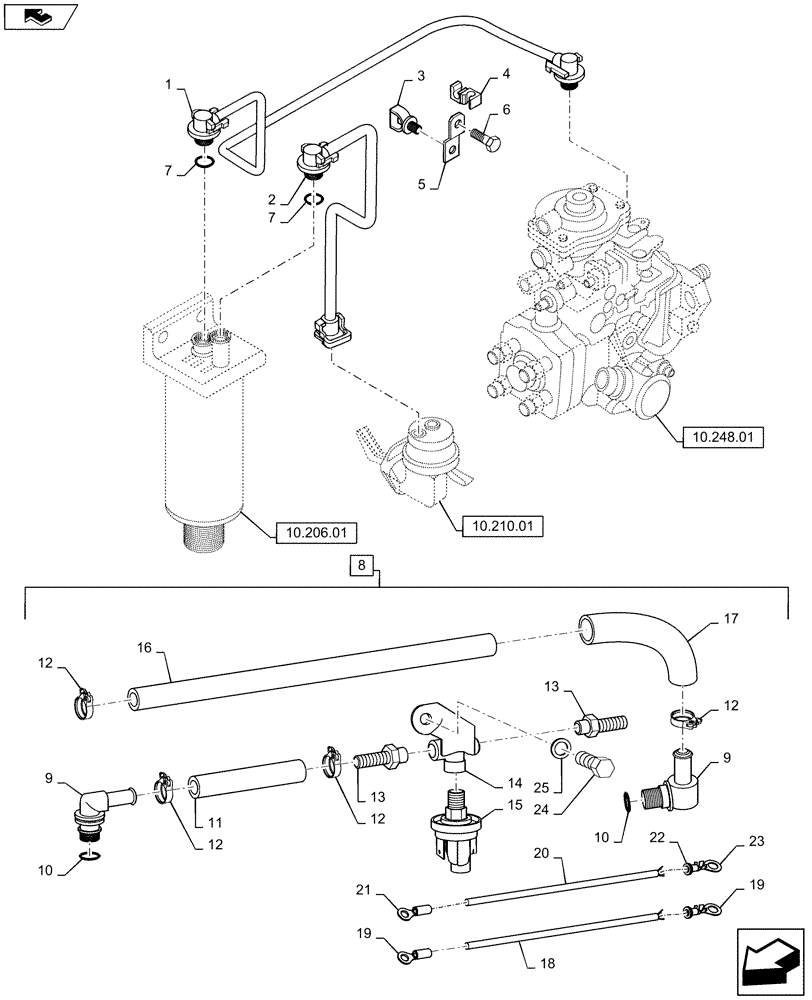

Запчасти Case IH P140 (10.214.01) - PIPING - FUEL (10) - ENGINE

1

2830470

INJECTION PIPE

- Assy

1шт.

2

2830473

TUBE

- Assy, includes clip NSS

1шт.

3

2852111

CLIP

1шт.

4

2852449

CLIP,8mm ID

1шт.

5

2852457

CLAMP

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

7

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

8

84606870

SERVICE KIT

Used In Place Of 2830470, Kit Incl 9 - 26, Start Serial: DJA0024222

1шт.

9

87414560

90 ELBOW

Tube, Incl 10

2шт.

10

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

11

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Fuel Bulk, Cut to 90mm

1шт.

12

86625022

HOSE CLAMP,6.3mm - 15.7mm

4шт.

13

87575678

HYD CONNECTOR

2шт.

14

NSS

NOT SOLD SEPARAT

Bracket Incl in 8

1шт.

15

84606881

PRESSURE SWITCH

Fuel Pressure 2 PSI

1шт.

16

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Fuel Bulk, Cut to 560mm

1шт.

17

47368717

HEATER HOSE

1шт.

18

NSS

NOT SOLD SEPARAT

Wire, Black 16 Awg, 160mm Incl in 8

1шт.

19

225058C1

TERMINAL CONNECTOR

2шт.

20

NSS

NOT SOLD SEPARAT

Wire, Blue 16 Awg, 400mm Incl in 8

1шт.

21

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

1шт.

22

225125C1

SEAL

Terminal

1шт.

23

87680656

CONTACT

Terminal, Packard Metripack

1шт.

24

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

26

47360042

INSTRUCTION

Not Illustrated

1шт.
