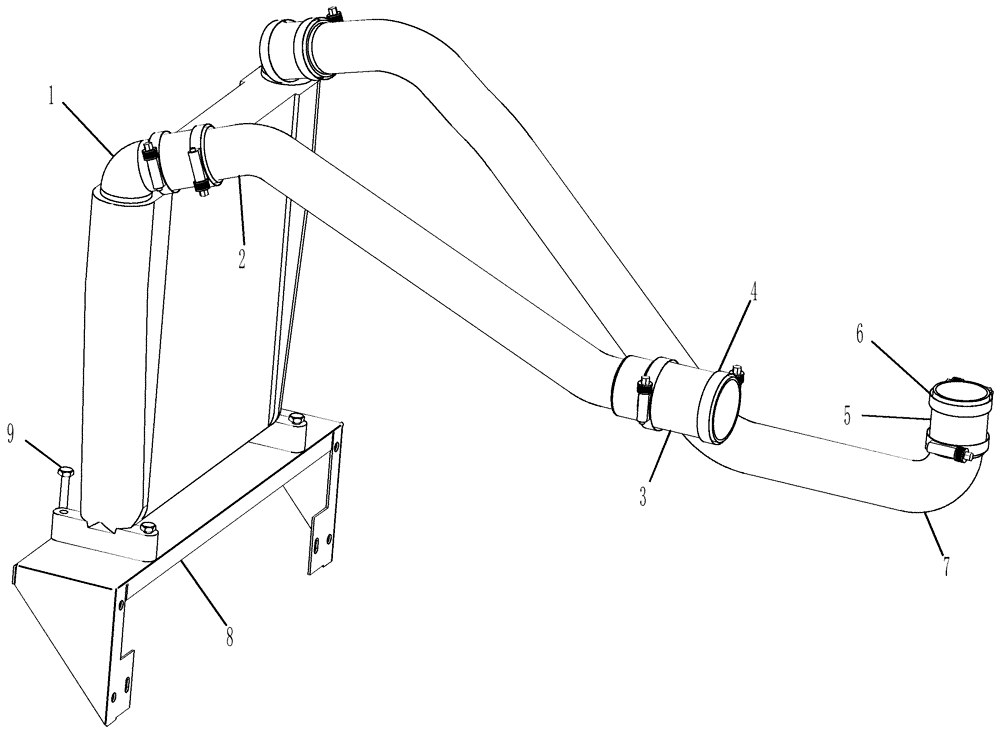

Запчасти Case IH P140 (10.202.03) - CHARGE AIR COOLING SYSTEM (10) - ENGINE

1

82028450

INTERCOOLER

1шт.

2

87416799

TUBE,63.50 mm OD x 639.2 mm L

Left (Cold)

1шт.

3

87405430

HOSE

3 Inch ID x 4 Inch

1шт.

4

87416749

CLAMP,2.75" - 3.62", Worm Gear

2шт.

5

87416333

HOSE

2.5 Inch ID x 3 Inch

3шт.

6

L115548

CLAMP,57.15mm - 79.38mm

6шт.

7

87717221

TUBE,2.5 mm OD x 35.125, 15.866 mm L

Right (Hot)

1шт.

8

87717286

BRACKET, SUPPORTING

1шт.

9

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

10

280136

NUT,3/8"-16, G8

(Not Shown)

8шт.

11

492-11038

LOCK WASHER,3/8"

(Not Shown)

8шт.

12

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

(Not Shown)

4шт.
