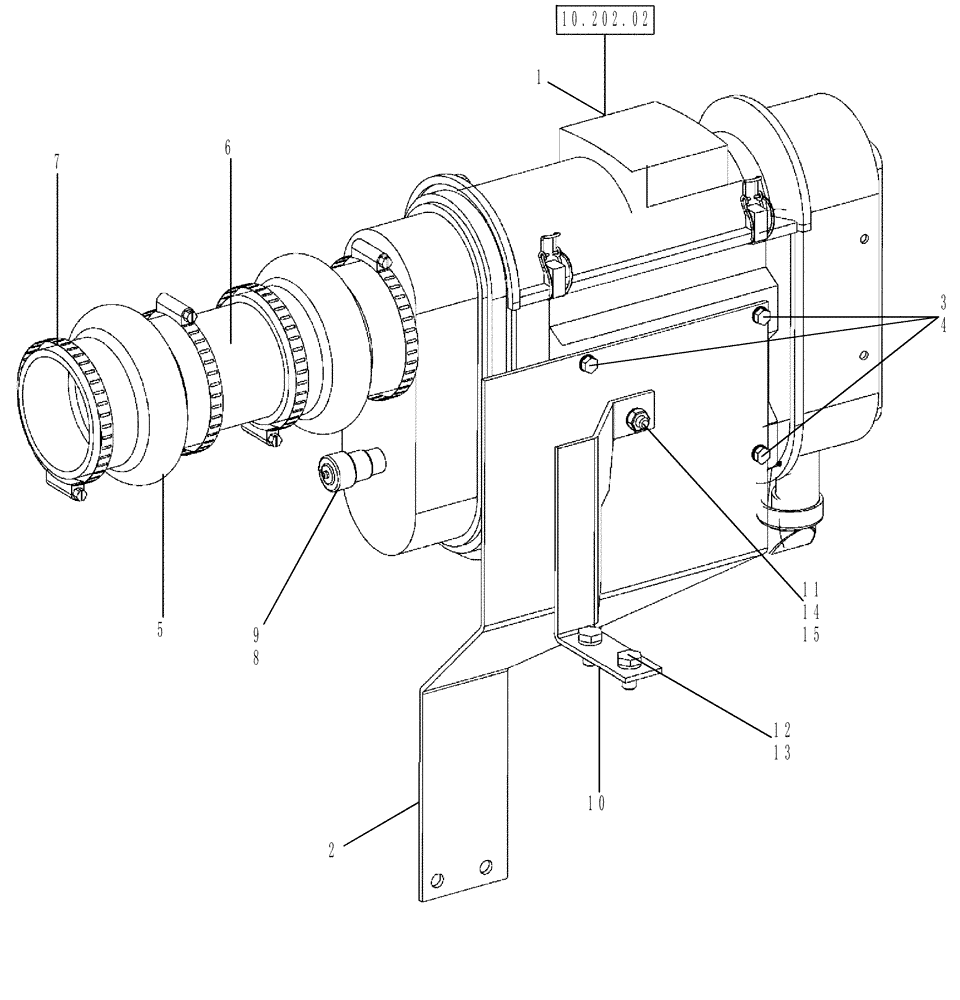

Запчасти Case IH P140 (10.202.01) - AIR CLEANER AND MOUNTING (10) - ENGINE

1

87716549

AIR CLEANER

1шт.

2

84286085

BRACKET

1шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

S89590

HOSE,4.00" ID x 5.25"

2шт.

6

87716539

TUBE,3.904" ID x 4" OD x 7.5" L

1шт.

7

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

8

86976679

ADAPTER

1шт.

9

533917C2

GAUGE

Air restriction

1шт.

10

84286083

BRACKET

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

15

892-11010

LOCK WASHER,M10

1шт.
