Запчасти Case IH P140 (10.105.01) - CONNECTING ROD (10) - ENGINE

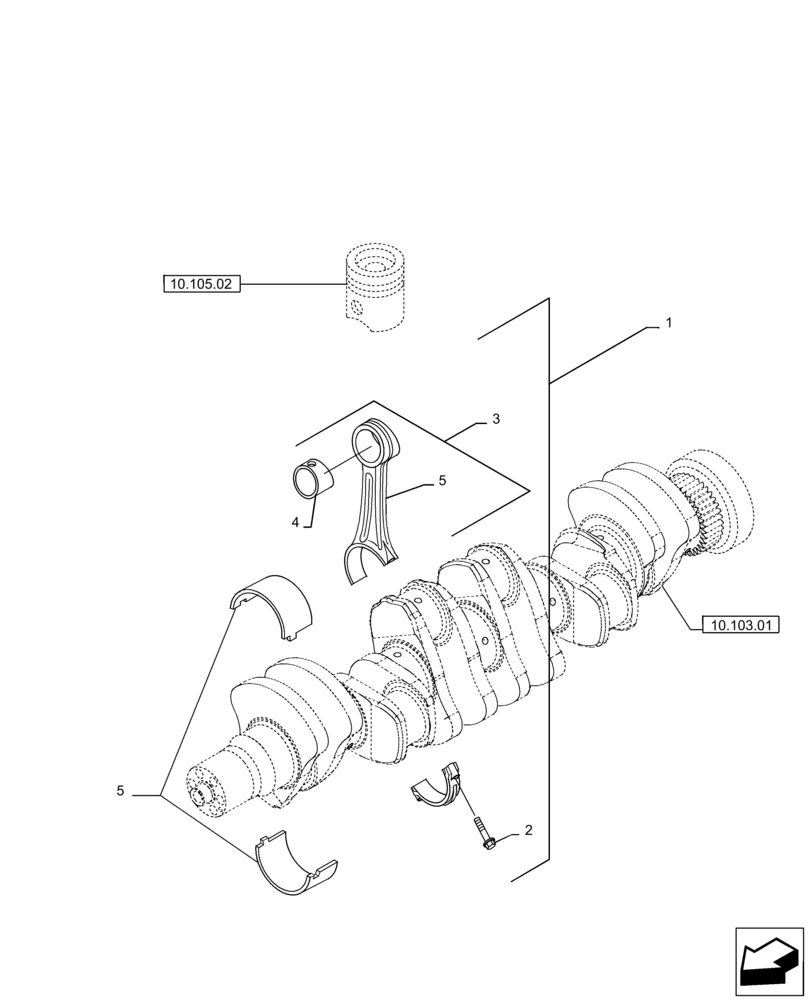

Схема запчастей Case IH P140 - (10.105.01) - CONNECTING ROD (10) - ENGINE
5
3
2
4
5
10.103.01
1
10.105.02

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

Assy, Incl 2 - 4

6шт.

1

2831298R

REMAN-CONNECTING ROD

6шт.

1

2831298C

CORE-ROD CONNECTING

Return #

1шт.

2

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

3

4895747

CONNECTING ROD

Incl 4

1шт.

3

2831298R

REMAN-CONNECTING ROD

Reman For New P/N 4895747

1шт.

3

2831298C

CORE-ROD CONNECTING

Return #

1шт.

4

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

5

8093882

BEARING SET

Connecting Rod, Standard

6шт.

5

8094960

BEARING SET,(-0.250)

Connecting Rod, Undersize, 0.25 mm

6шт.

5

8094961

BEARING SET,(-0.500)

Connecting Rod, Undersize, 0.50 mm

6шт.

Выбрано товаров: 11
