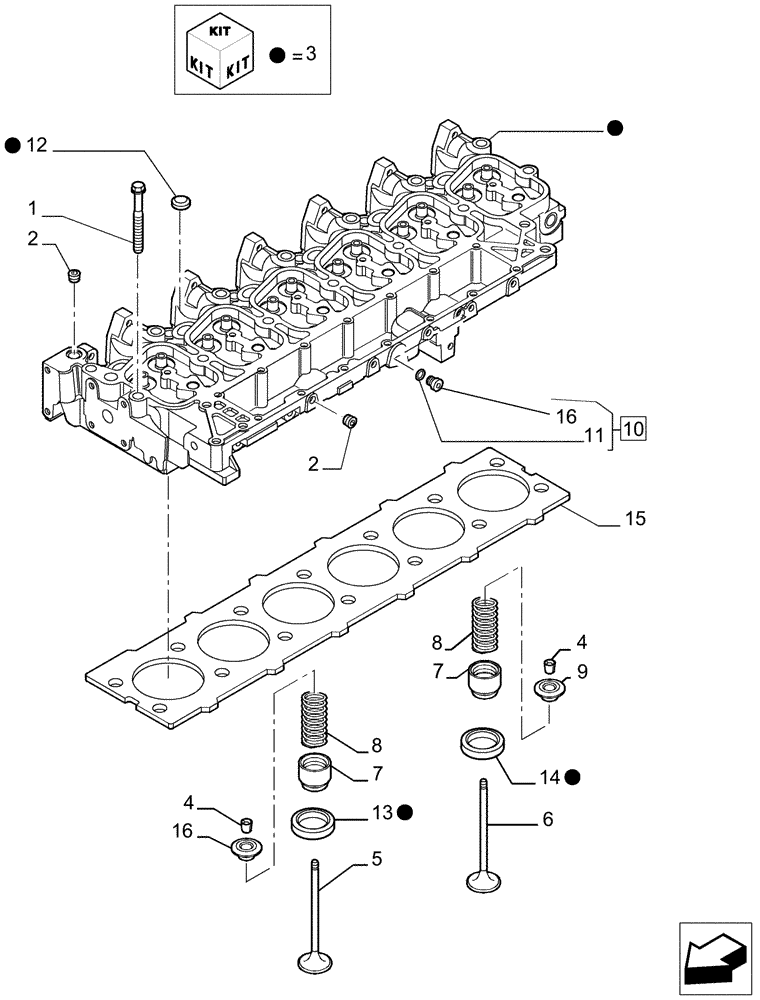

Запчасти Case IH P140 (10.101.01) - CYLINDER HEAD (10) - ENGINE

1

87478869

GASKET KIT

Cyl. Head Gaskets

1шт.

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

M12X130

6шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

14шт.

2

4895078

PIPE PLUG,1/2"-14

5шт.

3

2852740

CYLINDER HEAD

- ASSY

1шт.

4

4895183

COLLET

24шт.

5

4899632

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

7

4895347

SEAL

12шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

12шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

12шт.

10

4899009

PLUG,M10 x1

Incl. 11, 16

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

6шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

6шт.

15

2830923

CYLINDER HEAD GASKET,1.15mm Thk

SP=1.15

1шт.

15

2830922

CYLINDER HEAD GASKET,1.4mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG

1шт.
