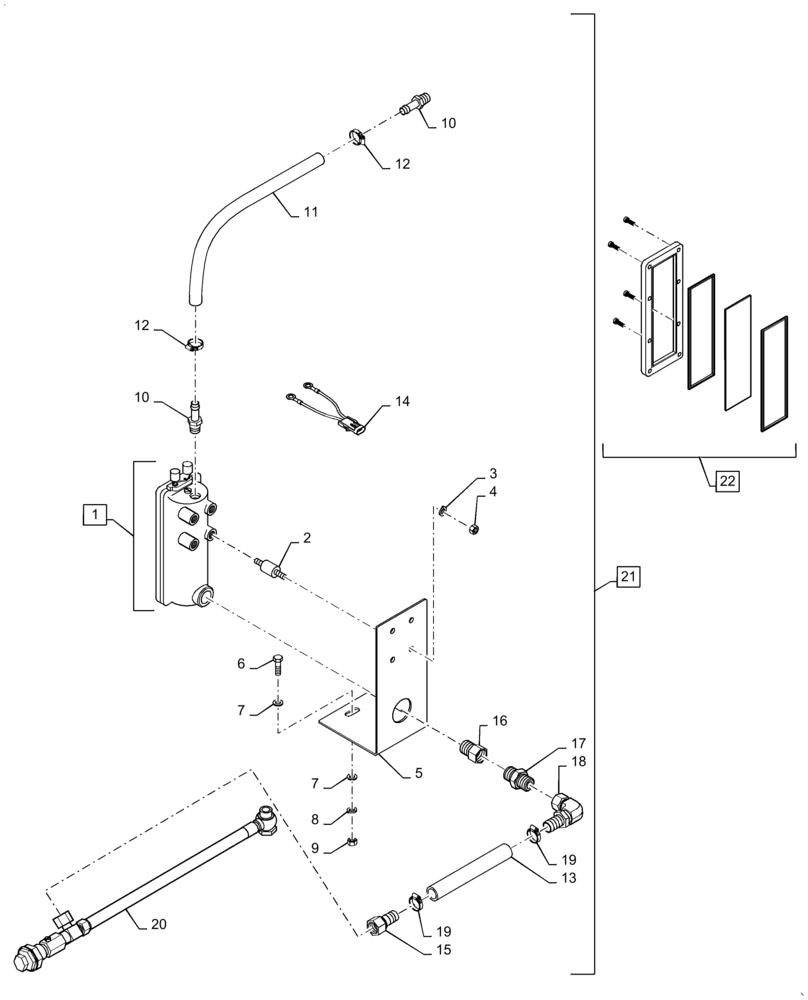

Запчасти Case IH P110 (55.410.01[01]) - OIL, LEVEL SHUTDOWN (10) - ENGINE

1

1347701C1

SWITCH ASSY

Oil Level, High/Low, Incl 2 - 4

1шт.

2

251203A1

MOUNT

Rubber, Shock

4шт.

3

492-11025

LOCK WASHER,1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

4шт.

5

1347702C1

BRACKET

Mounting, Switch

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

2шт.

11

706670C1

HOSE

1шт.

12

1348264C1

HOSE CLAMP

2шт.

13

73200C1

HOSE,16mm ID x 1219.2mm L

1шт.

14

87448292

WIRE HARNESS

Oil Level

1шт.

15

87448295

END FITTING

Straight, 5/8 Stem End x 3/4 - 16

1шт.

16

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

17

217-1103

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

1шт.

18

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

19

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

20

87445495

Drain

1шт.

21

87708245

SERVICE KIT

Low Oil Shut Down, Incl 1 - 20

1шт.

22

87455568

REPAIR KIT

Incl (1) Bezel, (1) Glass, (2) Gaskets and (8) Screws

1шт.
