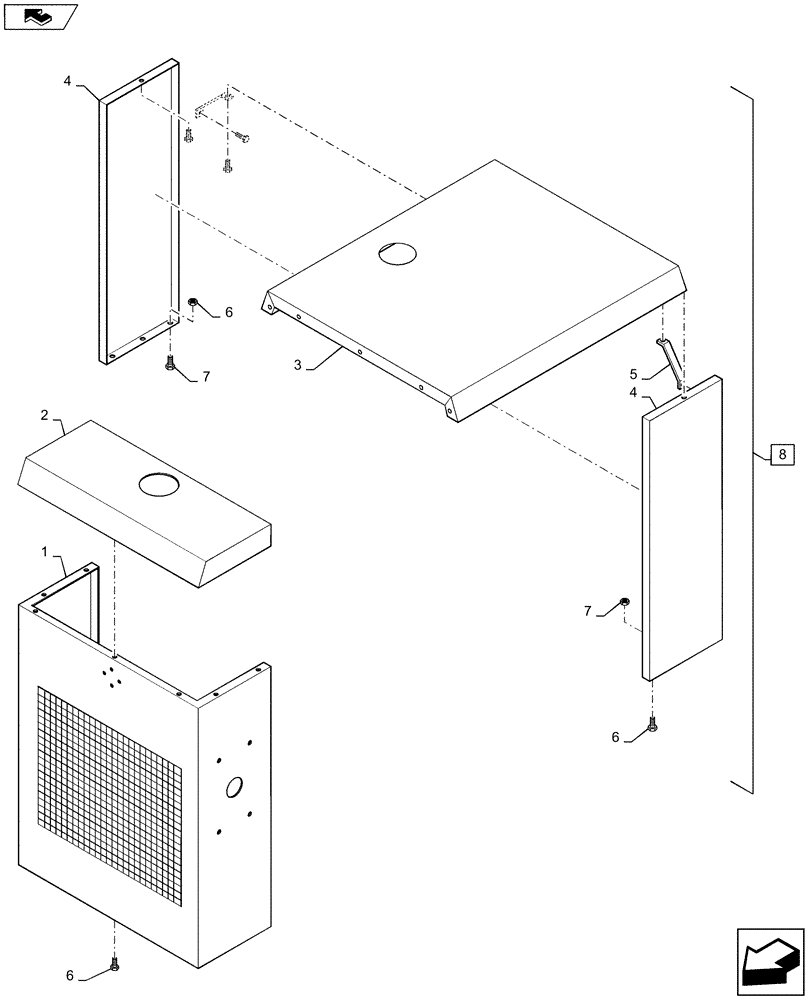

Запчасти Case IH P110 (09-01) - HOOD ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87709943

GRILLE

FRONT

1шт.

2

87709944

ENGINE HOOD PANEL

FRONT

1шт.

3

87710669

ENGINE HOOD PANEL

REAR

1шт.

4

87710670

BRACKET, SUPPORTING

PANEL, REAR SIDE

2шт.

5

87420722

BRACE

HOOD, SUPPORT

2шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

35шт.

7

87441708

NUT

SPECIAL

37шт.

8

87693965

ENGINE HOOD PANEL

REAR ASSY, INCL 3 - 7

1шт.
